    Dual Junction Coaxial Isolator 700 ~2000MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0368340700900SK

    700 ~ 900

    36

    1.3

    0.8

    SMA Female

    -30 ~ +70

    5o03683408001000NK

    800 ~ 1000

    40

    1.25

    0.8

    N Female

    -30 ~ +70

    5o0368340805870NK

    805 ~ 870

    45

    1.2

    0.6

    N Female

    -40 ~ +85

    5o03683408501150SJSK

    850 ~ 1150

    36

    1.3

    1.2

    SMA Male to SMA Female

    -30 ~ +70

    5o0368340860960SK

    860 ~ 960

    45

    1.2

    0.6

    SMA Female

    -40 ~ +85

    5o03683409001200SK

    900 ~ 1200

    40

    1.25

    1.0

    SMA Female

    -30 ~ +70

    5o03683409001300SK

    900 ~ 1300

    36

    1.3

    1.2

    SMA Female

    -30 ~ +70

    5o03683409501415SK

    950 ~ 1415

    36

    1.4

    1.2

    SMA Female

    0 ~ +60

    5o03683409501450SK

    950 ~ 1450

    32

    1.4

    1.2

    SMA Female

    0 ~ +60

    5o03683409601215NK

    960 ~ 1215

    40

    1.25

    0.8

    N Female

    -30 ~ +70

    5o036834010001500SK

    1000 ~ 1500

    36

    1.4

    1.2

    SMA Female

    0 ~ +60

    5o036834012251875SK

    1225 ~ 1875

    32

    1.4

    1.2

    SMA Female

    0 ~ +60

    5o036834013501850SK

    1350 ~ 1850

    36

    1.3

    1.0

    SMA Female

    0 ~ +60

    5o036834012901710SK

    1290 ~ 1710

    40

    1.25

    1.0

    SMA Female

    0 ~ +60

    5o036834013001740SK

    1300 ~ 1740

    40

    1.25

    1.0

    SMA Female

    0 ~ +60

    5o036834013001800SK

    1300 ~ 1800

    36

    1.3

    1.0

    SMA Female

    0 ~ +60

    5o036834013501850SK

    1350 ~ 1850

    36

    1.3

    1.0

    SMA Female

    0 ~ +60

     Basic Specifications

    Dimension

    68*34*22mm

    Forward   Power

    100W

    Reverse   Power

    30W

    Connector   Type

    N, SMA (Female/Male)

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

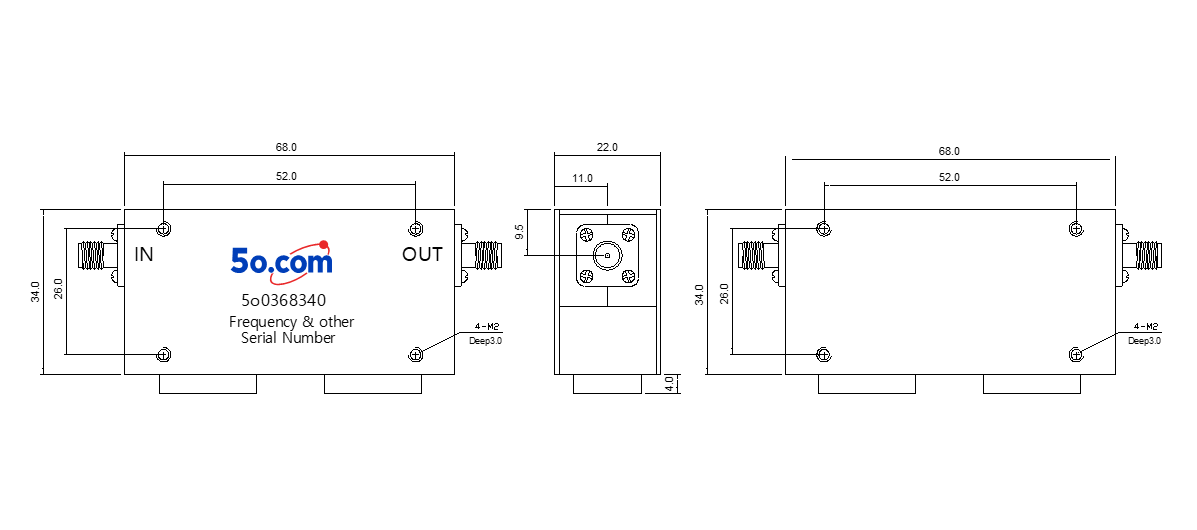

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
