    Dual Junction Coaxial Isolator 2.0 ~ 4.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o036434024SK

    2.0 ~ 4.0

    36

    1.3

    1.2

    SMA   Female

    5o036434024NK

    2.0 ~ 4.0

    36

    1.3

    1.2

    N Female

    Basic Specifications

    Dimension

    64*34*21mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating Temperature

    +10 ~ +70℃

    Reverse Power

    2W

    Storage Temperature

    -55~+125℃

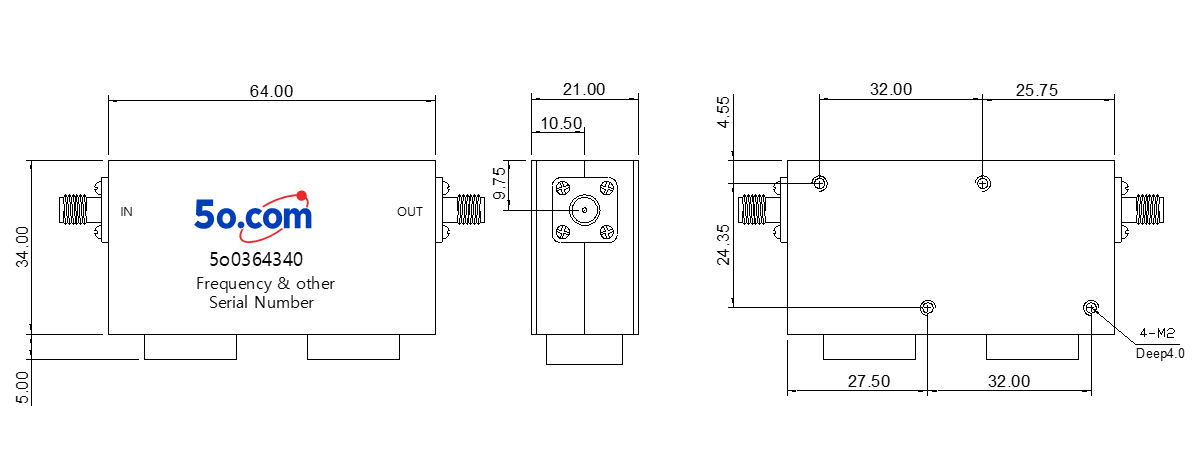

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/ Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
