    Dual Junction Coaxial Isolator 6.0 ~ 27.5GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o032618068SK

    6.0 ~ 8.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o032618079SK

    7.0 ~ 9.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o03261807477SK

    7.4 ~ 7.7

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o03261807886SK

    7.8 ~ 8.6

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o0326180810SK

    8.0 ~ 10.0

    40

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o0326180811SK

    8.0 ~ 11.0

    40

    1.25

    0.8

    SMA Female

    -55 ~ +85

    5o0326180812SK

    8.0 ~ 12.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o0326180910SK

    9.0 ~ 10.0

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o0326180911SK

    9.0 ~ 11.0

    40

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o03261809395SJ

    9.3 ~ 9.5

    45

    1.2

    0.6

    SMA Male

    -55 ~ +85

    5o03261801013SK

    10.0 ~ 13.0

    42

    1.2

    0.8

    SMA Female

    -55 ~ +85

    5o03261801015SKSJ

    10.0 ~ 15.0

    36

    1.35

    1.2

    SMA Female to SMA Male

    -55 ~ +85

    5o0326180107133SKSJ

    10.7 ~ 13.3

    45

    1.2

    0.6

    SMA Female to SMA Male

    -55 ~ +85

    5o03261801218SK

    12.0 ~ 18.0

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o03261801375145SK

    13.75 ~ 14.5

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o0326180138178SK

    13.8 ~ 17.8

    36

    1.3

    1.0

    SMA Female

    -55 ~ +85

    5o0326180155165SK

    15.5 ~ 16.5

    45

    1.2

    0.6

    SMA Female

    -55 ~ +85

    5o03261801618SK

    16.0 ~ 18.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o03261801820SK

    18.0 ~ 20.0

    40

    1.25

    1.0

    SMA Female

    -55 ~ +85

    5o03261801822SK

    18.0 ~ 22.0

    36

    1.3

    1.2

    SMA Female

    -40 ~ +85

    5o03261802123SK

    21.0 ~ 23.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o03261802224SK

    22.0 ~ 24.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o03261802325SK

    23.0 ~ 25.0

    40

    1.25

    1.0

    SMA Female

    -40 ~ +85

    5o03261802426KK

    24.0 ~ 26.0

    40

    1.25

    1.0

    2.92mm Female

    -40 ~ +85

    5o03261802425275KK

    24.25 ~ 27.5

    36

    1.3

    1.2

    2.92mm Female

    -40 ~ +85

    5o03261802527KK

    25.0 ~ 27.0

    40

    1.25

    1.0

    2.92mm Female

    -40 ~ +85

    Basic Specifications

    Dimension

    26*18*13.8mm

    Forward Power

    60W

    Reverse Power

    5W

    Connector Type

    SMA, 2.92mm (Female/Male)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

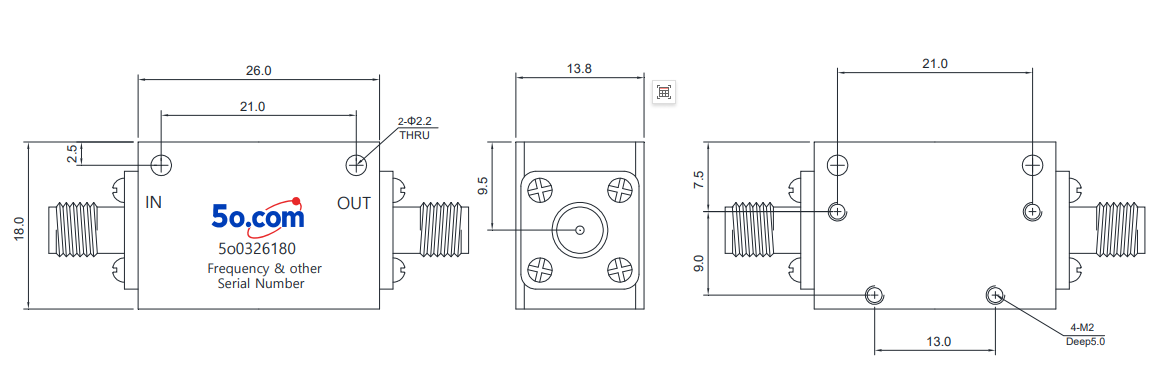

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, 2.92mm Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
