    Dual Junction Drop in Isolator 400 ~3000MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Forward Power(W)

    Reverse Power(W)

    5o0240270400420

    400 ~ 420

    32

    1.4

    1.4

    100

    100

    5o0240270430450

    430 ~ 450

    36

    1.3

    1.0

    100

    100

    5o0240270450470

    450 ~ 470

    40

    1.25

    1.0

    100

    100

    5o0240270470490

    470 ~ 490

    40

    1.25

    1.0

    100

    100

    5o0240270490510

    490 ~ 510

    40

    1.25

    1.0

    100

    100

    5o0240270700800

    700 ~ 800

    36

    1.3

    1.0

    100

    100

    5o0240270825865

    825 ~ 865

    40

    1.25

    0.7

    100

    100

    5o0240270860960

    860 ~ 960

    40

    1.25

    0.8

    100

    100

    5o0240270869894

    869 ~ 894

    45

    1.2

    0.6

    100

    100

    5o0240270880960

    880 ~ 960

    45

    1.2

    0.6

    100

    100

    5o0240270902928

    902 ~ 928

    45

    1.15

    0.5

    100

    100

    5o0240270925960

    925 ~ 960

    45

    1.15

    0.5

    100

    100

    5o024027010001200

    1000 ~ 1200

    40

    1.25

    0.8

    100

    100

    5o024027014501550

    1450 ~ 1550

    45

    1.2

    0.6

    100

    100

    5o024027017102170

    1710 ~ 2170

    36

    1.3

    1.0

    100

    100

    5o024027017151805A30

    1715 ~ 1805

    45

    1.2

    0.6

    100

    30dB 100W

    5o024027018051880A30

    1805 ~ 1880

    50

    1.15

    0.5

    100

    30dB 100W

    5o024027019201990A30

    1920 ~ 1990

    50

    1.15

    0.5

    100

    30dB 100W

    5o024027021102170

    2110 ~ 2170

    50

    1.15

    0.5

    100

    100

    5o024027020002700

    2000 ~ 2700

    36

    1.3

    1.0

    100

    100

    5o024027022000200

    2200 ~ 2300

    45

    1.2

    0.6

    100

    100

    5o024027024002500

    2400 ~ 2500

    45

    1.2

    0.6

    100

    100

    5o024027024962690

    2496 ~ 2690

    45

    1.2

    0.6

    100

    100

    5o024027025002700

    2500 ~ 2700

    45

    1.2

    0.6

    100

    100

     Basic Specifications

    Dimension

    40*27.5*8.6mm

    Connector   Type

    TAB

    Operating Temperature

    -40 ~ +85℃

    Storage   Temperature

    -55℃~+125℃

    Impedance

    50Ω

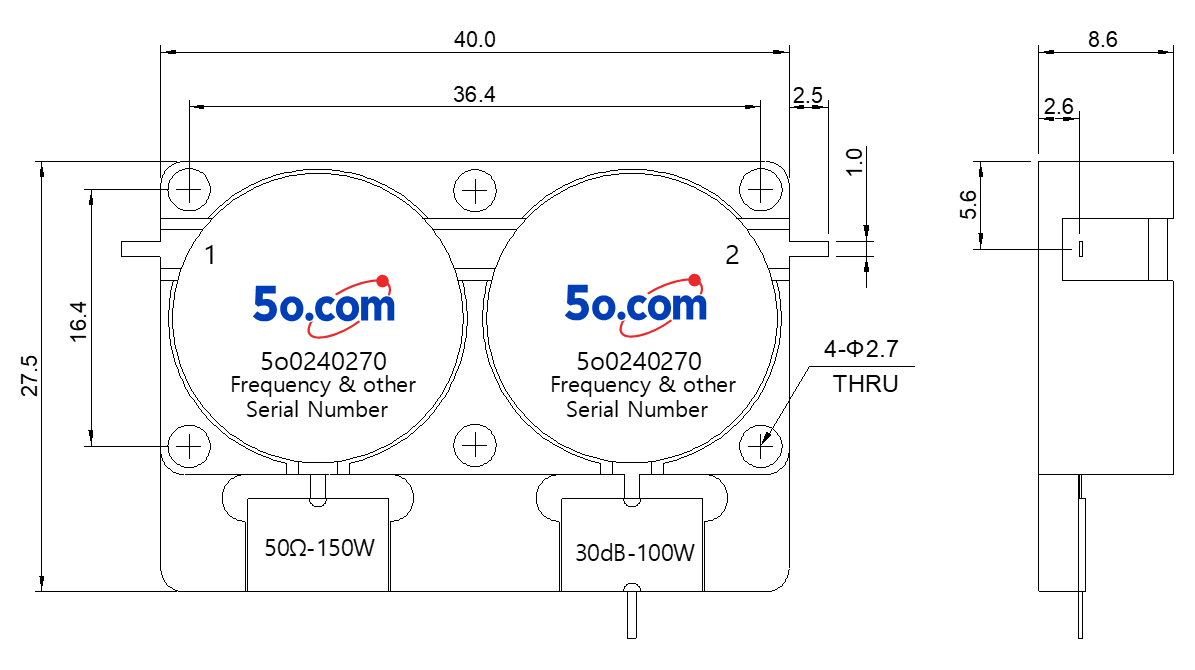

    Overall Dimension(mm)


    Instructions                              Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆For the third stage, you can select a 100W load, a 20dB attenuator, or a 30dB attenuator.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
