Part Number

Frequency Range (MHz)

Isolation
  Min(dB)

VSWR
  Max

Insertion Loss
  Max(dB)

Connector

Type

Temp.(°C)

5o0135380220240

220 ~ 240

18

1.3

0.65

TAB

-20 ~ +65

5o0135380240260

240 ~ 260

18

1.3

0.5

TAB

-20 ~ +65

5o0135380260280

260 ~ 280

20

1.25

0.5

TAB

-20 ~ +65

5o0135380309339

309 ~ 339

20

1.25

0.4

TAB

-20 ~ +65

5o0135380350370

350 ~ 370

21

1.2

0.35

TAB

-20 ~ +65

5o0135380380460

380 ~ 460

18

1.3

0.5

TAB

-20 ~ +65

5o0135380390410

390 ~ 410

23

1.2

0.3

TAB

-30 ~ +70

5o0135380400470

400 ~ 470

20

1.25

0.4

TAB

-30 ~ +70

5o0135380413419

413 ~ 419

30

1.15

0.3

TAB

-30 ~ +70

5o0135380419425

419 ~ 425

30

1.15

0.3

TAB

-30 ~ +70

5o0135380440470

440 ~ 470

23

1.2

0.3

TAB

-30 ~ +70

5o0135380450520

450 ~ 520

20

1.25

0.4

TAB

-20 ~ +65

5o0135380600800

600 ~ 800

19

1.25

0.5

TAB

-20 ~ +65

5o0135380700900

700 ~ 900

20

1.25

0.4

TAB

-20 ~ +65

5o01353807001000

700 ~ 1000

16

1.4

0.6

TAB

-30 ~ +70

5o0135380770860

770 ~ 860

23

1.2

0.3

TAB

-30 ~ +70

5o0135380860872

860 ~ 872

30

1.15

0.25

TAB

-20 ~ +65

5o0135380900930

900 ~ 930

30

1.15

0.2

TAB

-40 ~ +85

5o013538010001300

1000 ~ 1300

20

1.25

0.4

TAB

-30 ~ +70

5o013538011001700

1100 ~ 1700

15

1.45

0.5

TAB

-30 ~ +70

5o013538012961298

1296 ~ 1298

30

1.15

0.2

TAB

-40 ~ +85

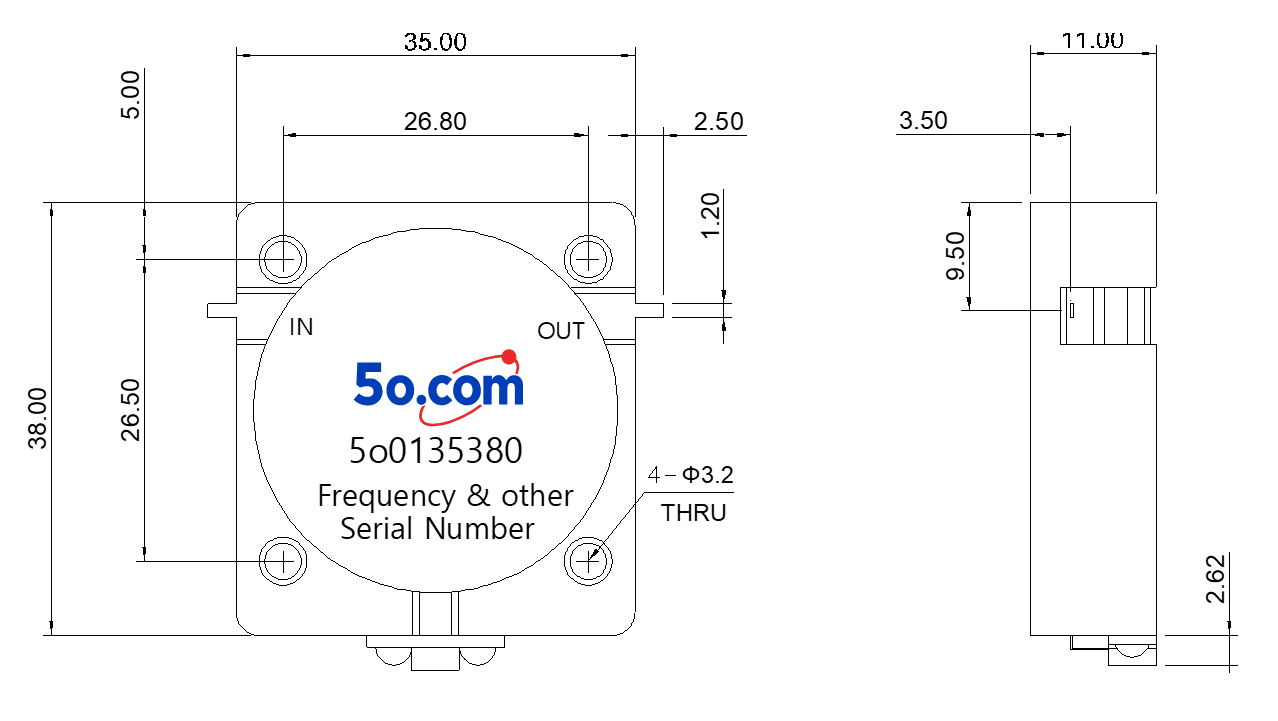

Dimension

35*38*11mm

Forward Power

300W

Reverse Power

30W

Connector Type

TAB

Storage Temperature

-40℃~+125℃

Impedance

50Ω
