    Coaxial Isolator 4.0 ~ 8.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0025360445NK

    4.0   ~ 4.5

    20

    1.25

    0.4

    N Female

    -20   ~ +70

    5o0025360455NK

    4.5   ~ 5.0

    23

    1.2

    0.35

    N Female

    -20   ~ +70

    5o00253604751NK

    4.7   ~ 5.1

    23

    1.2

    0.35

    N Female

    -20   ~ +70

    5o00253604859NK

    4.8   ~ 5.9

    20

    1.25

    0.5

    N Female

    -20   ~ +70

    5o002536056NK

    5.0   ~ 6.0

    20

    1.25

    0.4

    N Female

    -20   ~ +70

    5o00253605759NK

    5.7   ~ 5.9

    23

    1.2

    0.3

    N Female

    -20   ~ +70

    5o00253605865NK

    5.8   ~ 6.5

    23

    1.2

    0.3

    N Female

    -20   ~ +70

    5o0025360657NK

    6.5   ~ 7.0

    20

    1.25

    0.4

    N Female

    -20   ~ +70

    5o002536078NK

    7.0   ~ 8.0

    20

    1.25

    0.4

    N Female

    -20   ~ +70

    Basic Specifications

    Dimension

    25*36*18mm

    Forward Power

    300W

    Reverse Power

    100W

    Connector Type

    N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

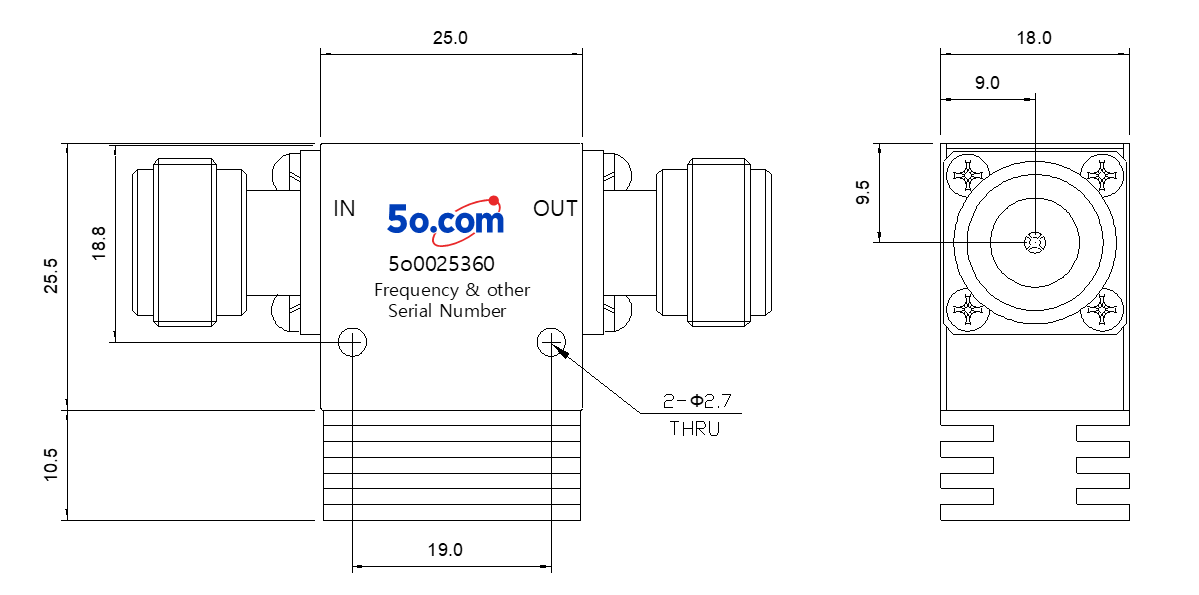

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (N Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
