    Coaxial Isolator 6.0 ~ 18.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o0016210618SJSK

    6.0 ~ 18.0

    10

    1.9

    1.5

    SMA Male to SMA Female

    5o0016210618SK

    6.0 ~ 18.0

    10

    1.9

    1.5

    SMA Female

     Basic Specifications

    Dimension

    16*21.5*14 mm

    Impedance

    50Ω

    Forward   Power

    60W

    Operating Temperature

    -30 ~ +70℃

    Reverse   Power

    10W

    Storage Temperature

    -55~+125℃

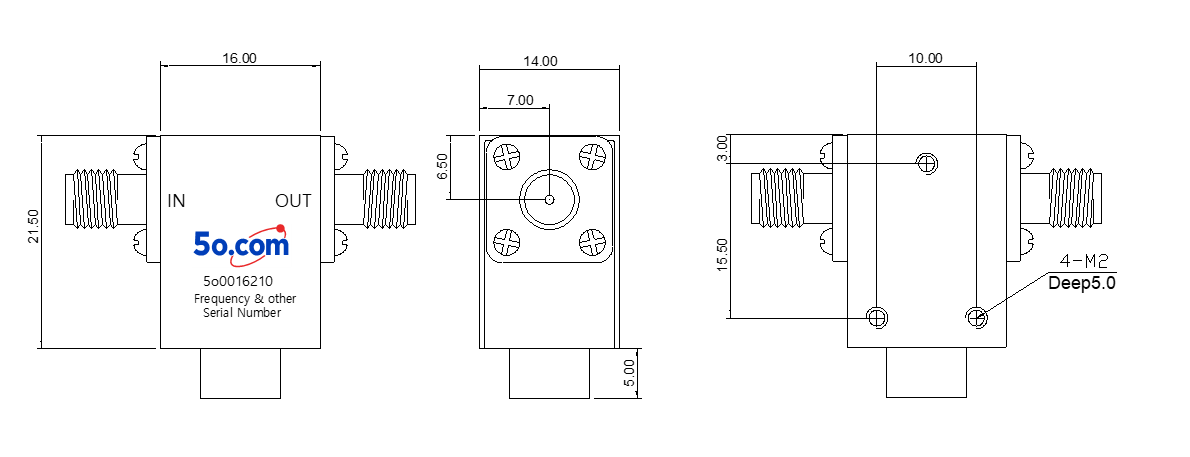

    Overall Dimension(mm)


    Instructions                           Tolerances: ±2% unless otherwise stated.

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
