    Coaxial Isolator 22.0 ~ 33.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Military, Space and Commercial applications.

    ▶Medical, Communication, Security.


    RF Characteristics

    Part Number

    Frequency
       Range (GHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o00131842233KK

    22.0   ~ 33.0

    16

    1.4

    0.9

    2.92mm Female

    +25±5

    15

    1.5

    1.0

    -40   ~ +80

    5o00131842233KJKK

    22.0   ~ 33.0

    16

    1.4

    0.9

    2.92mm Male to 2.92mm Female

    +25±5

    15

    1.5

    1.0

    -40   ~ +80

    Basic Specifications

    Dimension

    13*18*12.7mm

    Impedance

    50Ω

    Forward Power

    10W

    Operating   Temperature

    -40 ~ +80℃

    Reverse Power

    10W

    Storage Temperature

    -55 ~+125℃

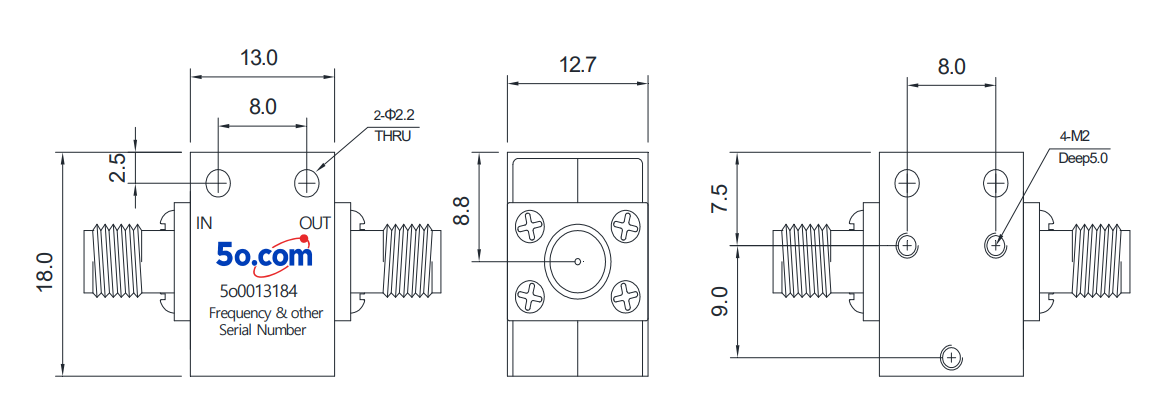

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆ It can be dual junction or multiple for high isolation.

    ◆ The connector can be selected according to requirements, Connect type (2.92mm Male/Female)

    ◆ Only some common frequencies in the table can be produced according to the user's requirements.

    ◆ It supports a one-year standard warranty.
