    Coaxial Isolator 6.0 ~ 27.5GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o001318068SK

    6.0 ~ 8.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o001318079SK

    7.0 ~ 9.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    5o00131807477SK

    7.4 ~ 7.7

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o00131807886SK

    7.8 ~ 8.6

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013180810SK

    8.0 ~ 10.0

    20

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o0013180811SK

    8.0 ~ 11.0

    20

    1.25

    0.4

    SMA Female

    -55 ~ +85

    5o0013180812SK

    8.0 ~ 12.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o0013180910SK

    9.0 ~ 10.0

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013180911SK

    9.0 ~ 11.0

    20

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o00131809395SJ

    9.3 ~ 9.5

    23

    1.2

    0.3

    SMA Male

    -55 ~ +85

    5o00131801013SK

    10.0 ~ 13.0

    21

    1.2

    0.4

    SMA Female

    -55 ~ +85

    5o00131801015SKSJ

    10.0 ~ 15.0

    18

    1.35

    0.6

    SMA Female to SMA Male

    -55 ~ +85

    5o0013180107133SKSJ

    10.7 ~ 13.3

    23

    1.2

    0.35

    SMA Female to SMA Male

    -55 ~ +85

    5o00131801218SK

    12.0 ~ 18.0

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o00131801375145SK

    13.75 ~ 14.5

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o0013180138178SK

    13.8 ~ 17.8

    18

    1.3

    0.5

    SMA Female

    -55 ~ +85

    5o0013180155165SK

    15.5 ~ 16.5

    23

    1.2

    0.3

    SMA Female

    -55 ~ +85

    5o00131801618SK

    16.0 ~ 18.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    5o00131801820SK

    18.0 ~   20.0

    20

    1.25

    0.5

    SMA Female

    -55 ~ +85

    5o00131801822SK

    18.0 ~ 22.0

    18

    1.3

    0.6

    SMA Female

    -40 ~ +85

    5o00131802123SK

    21.0 ~ 23.0

    20

    1.25

    0.5

    SMA Female

    -40 ~ +85

    5o00131802224SK

    22.0 ~ 24.0

    20

    1.25

    0.5

    SMA Female

    -40 ~ +85

    5o00131802325SK

    23.0 ~ 25.0

    20

    1.25

    0.5

    SMA Female

    -40 ~ +85

    5o00131802426KK

    24.0 ~ 26.0

    20

    1.25

    0.5

    2.92mm Female

    -40 ~ +85

    5o00131802425275KK

    24.25 ~ 27.5

    18

    1.3

    0.6

    2.92mm Female

    -40 ~ +85

    5o00131802527KK

    25.0 ~ 27.0

    20

    1.25

    0.5

    2.92mm Female

    -40 ~ +85

    Basic Specifications

    Dimension

    13*18*13.8mm

    Forward Power

    60W

    Reverse Power

    5W

    Connector Type

    2.92mm(Male/Female), SMA(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

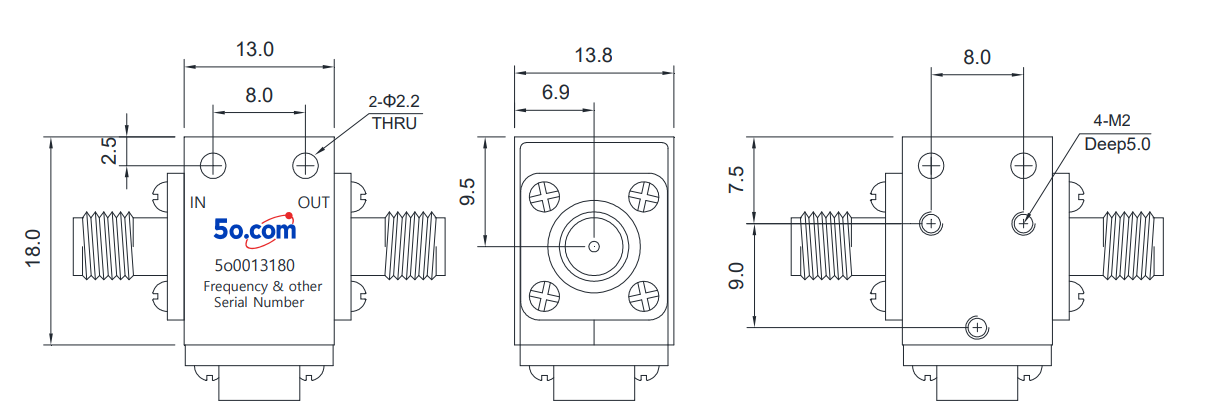

    Overall Dimension(mm)


    Instructions                                                                  Tolerances: ±2% unless otherwise stated.

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, 2.92mm Male/Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
