    8 TX Combiner 330 ~ 520MHz

    Application


    ▶Base Stations & Antenna feeds.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Frequency Separation

    Insertion Loss(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    5o8463306700xxxxxxxxNK

    330 ~ 520

    ≥250 KHz

    3.8 ~ 5.0dB

    65dB Min. @TX-TX 55dB Min. @ANT-TX

    1.25:1 Max. @Input 1.5:1 Max. @Output

    Basic Specifications

    Number of Channels

    N Female @8xTX   N   Female @1xANT

    Input Power

    50W

    Tuning Range

    5MHz

    Dimension

    330*670*500mm

    Operating Temperature

    -10~+65℃

    Storage Temperature

    -55~+125℃

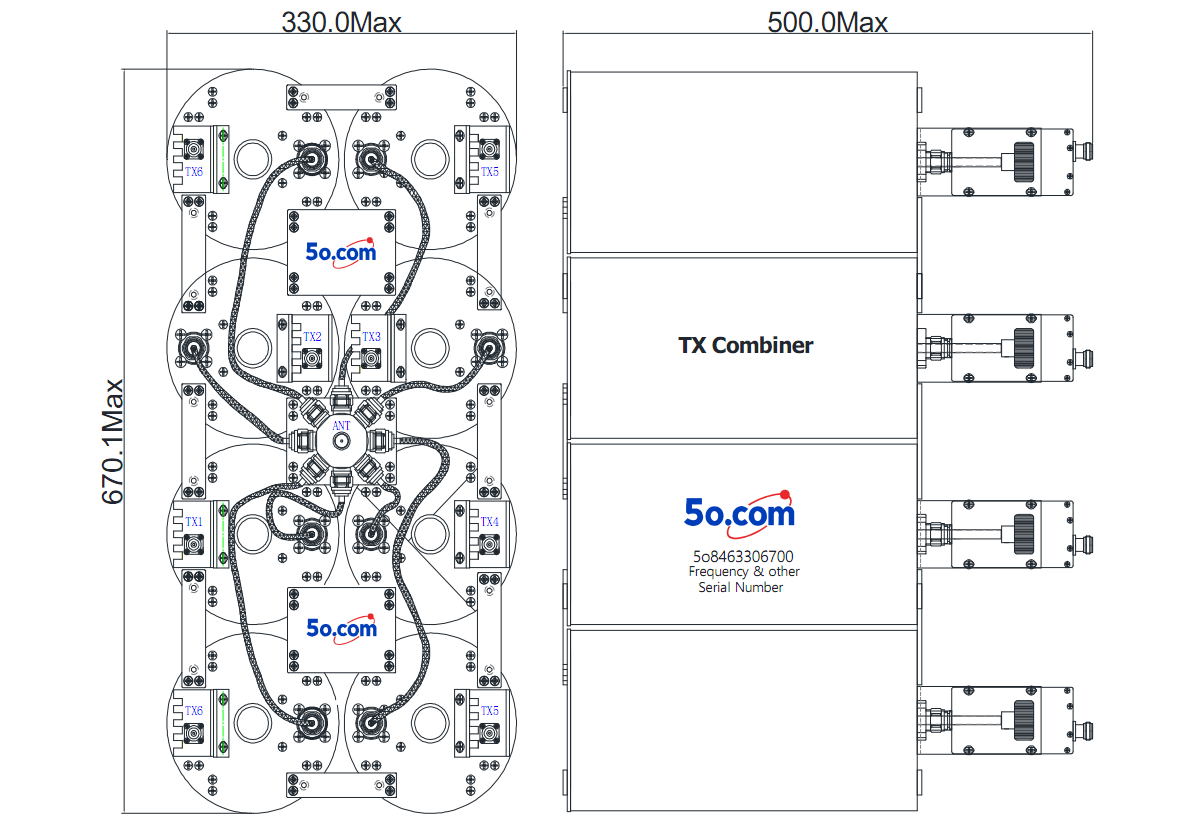

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
