     Waveguide to Coaxial Adapter WR650 (BJ14)

     Application



    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector   Type

    (Waveguide

    Connector

    Type

    5o60WR6500113173NK

    1.13~1.73

    0.2

    1.2

    WR650

    (BJ14)

    N Female

    5o60WR6500113173SK

    1.13~1.73

    0.2

    1.2

    WR650

    (BJ14)

    SMA Female

    5o60WR6500113173DK

    1.13~1.73

    0.2

    1.2

    WR650

    (BJ14)

    7/16 Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak   Power

    3W

    Operating   Temperature

    -55 ~ +85℃

    Connector   Type

    (Waveguide)

    WR650(BJ14)

    Storage Temperature

    -55~+125℃

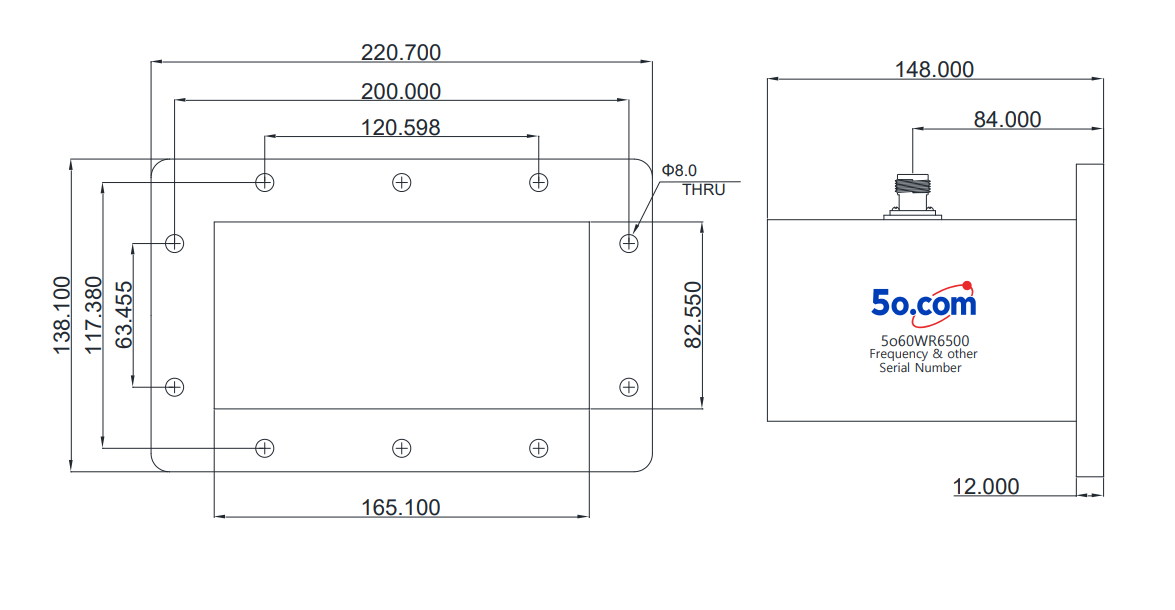

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
