     Waveguide to Coaxial Adapter WR10 (BJ900)

     Application



    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector   Type

    (Waveguide)

    Connector

    Type

    5o60WR1047381121K

    73.8 ~ 112.0

    1.2

    1.6

    WR10

    (BJ900)

    1.0mm Female

    Basic Specifications

    Power

    3W

    Impedance

    50Ω

    Peak Power

    100W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR10(BJ900)

    Storage Temperature

    -55~+125℃

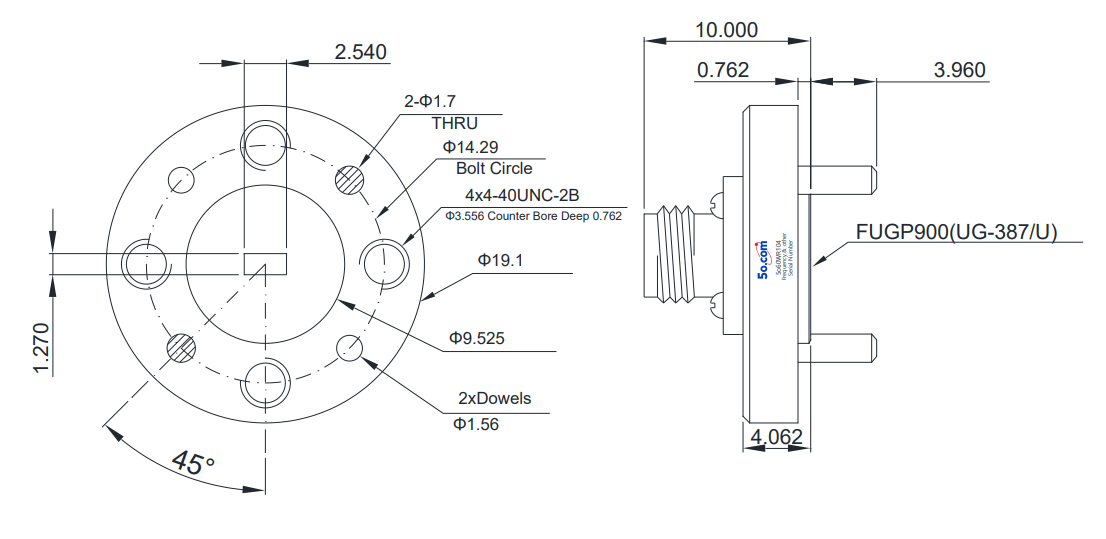

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
