    Dual Directional Coupler 3.0 ~ 4.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o56555503450NK

    3.0 ~4.0

    50±1.5

    0.4

    10

    1.3

    N Female

    Basic Specifications

    Dimension

    55*55*20mm

    Connector   Type

    N Female

    Power

    300W

    Operating   Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

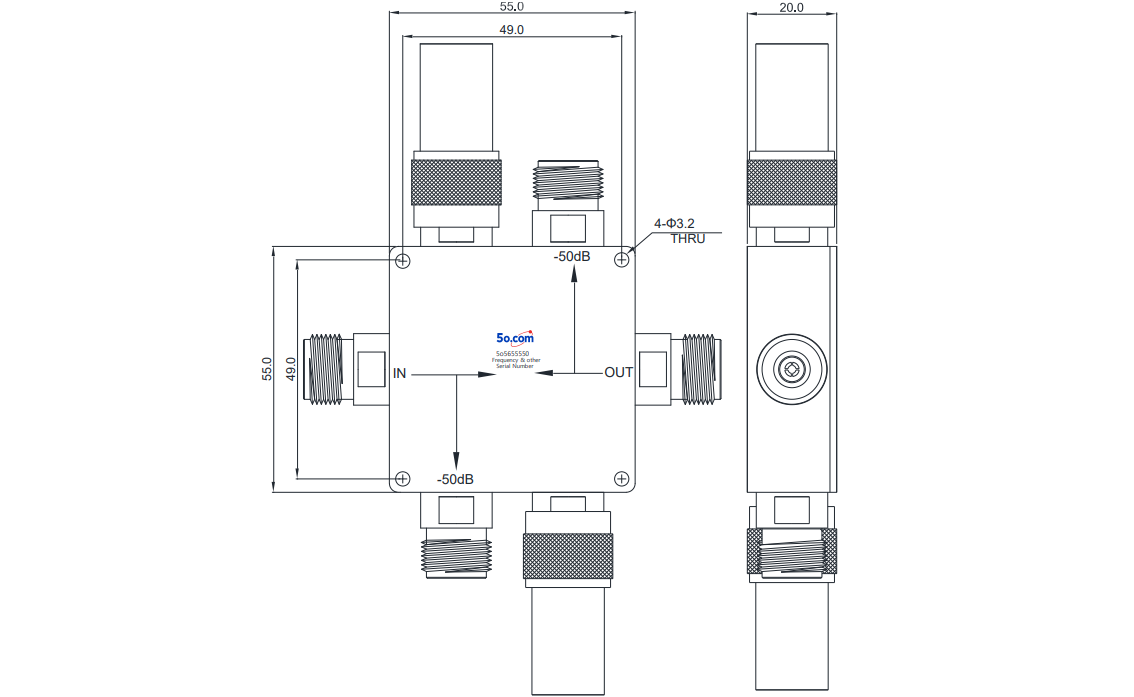

    Overall Dimension(mm)



    Tolerances: ±2% unless otherwise stated.
