    Dual Directional Coupler 800 ~ 3600MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.



    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5621424008003600107SK

    0.8 ~3.6

    10±1.3

    7±1.3

    3.5

    15

    1.5

    SMA Female

    5o5621424008003600107NK

    0.8 ~3.6

    10±1.3

    7±1.3

    3.5

    15

    1.5

    N Female

    Basic Specifications

    Dimension

    214*24*20mm

    Connector   Type

    N/SMA Female

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

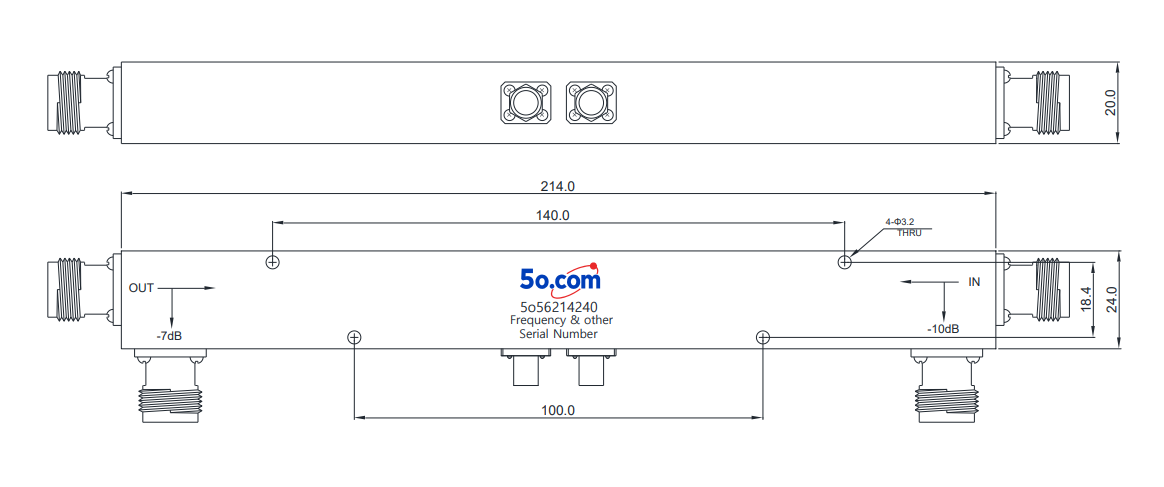

    Overall Dimension(mm)


     Tolerances: ±2% unless otherwise stated.
