    Dual Directional Coupler 3.0 ~ 6.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Power(W)

    Connector

    Type

    5o561002503610NK

    3.0 ~6.0

    10±1.5

    1.5

    18

    1.5

    30

    N Female

    5o561002503620NK

    3.0 ~6.0

    20±1

    1.1

    18

    1.3

    50

    N Female

    5o561002503630NK

    3.0 ~6.0

    30±1

    1.0

    18

    1.3

    100

    N Female

    5o561002503610SK

    3.0 ~6.0

    10±1.5

    1.5

    18

    1.5

    30

    SMA Female

    5o561002503620SK

    3.0 ~6.0

    20±1

    1.1

    18

    1.3

    50

    SMA Female

    5o561002503630SK

    3.0 ~6.0

    30±1

    1.0

    18

    1.3

    100

    SMA Female

    Basic Specifications

    Dimension

    100*25*19mm

    Impedance

    50Ω

    Operating Temperature

    -55 ~ +85℃

    Storage Temperature

    -55~+125℃

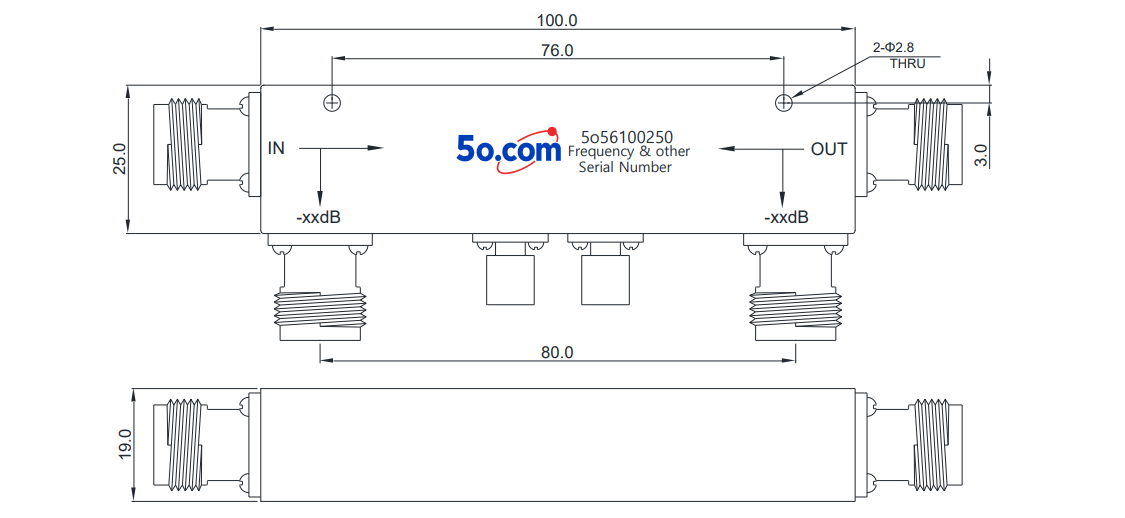

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
