    Directional Coupler 1.0 ~ 4.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    Flatness

    (dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5582200146SK

    1.0 ~4.0

    6±1

    ±0.7

    2.0

    18

    1.3

    N   Female

    5o55822001410SK

    1.0 ~4.0

    10±1

    ±0.7

    1.0

    18

    1.3

    N   Female

    5o55822001420SK

    1.0   ~4.0

    20±1

    ±0.9

    0.5

    18

    1.3

    N   Female

    5o55822001430SK

    1.0   ~4.0

    30±1

    ±0.9

    0.5

    18

    1.3

    N   Female

    Basic Specifications

    Dimension

    82*20*20mm

    Connector   Type

    SMA Female

    Power

    50W

    Operating   Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

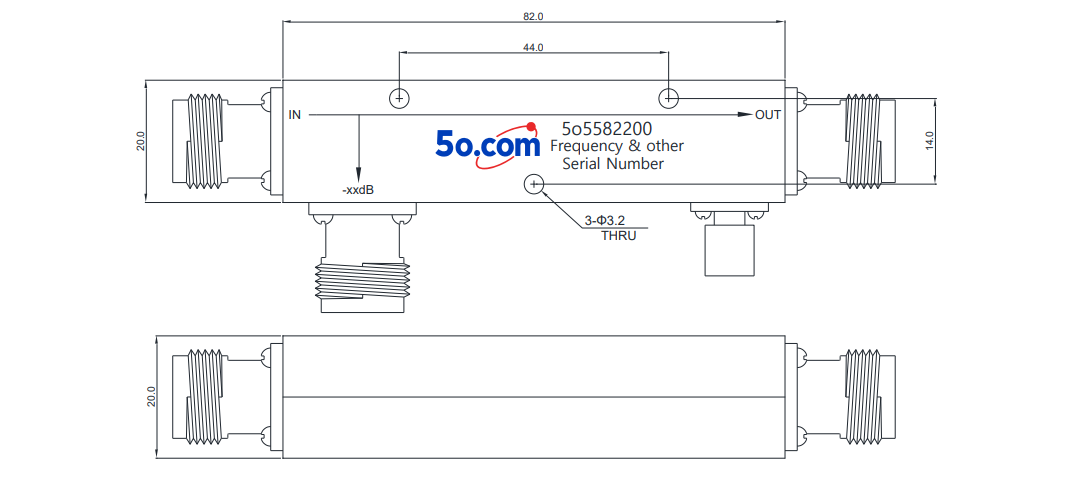

    Overall Dimension(mm)





    Tolerances: ±2% unless otherwise stated.
