    Directional Coupler 2.0 ~8.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Nominal

    Coupling(dB)

    Flatness

    (dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5555250286NK

    2.0 ~8.0

    6±1

    ±1.0

    1.8

    16

    1.5

    N Female

    5o55552502810NK

    2.0 ~8.0

    10±1

    ±1.0

    1.0

    16

    1.5

    N Female

    5o55552502820NK

    2.0 ~8.0

    20±1

    ±1.0

    1.0

    16

    1.5

    N Female

    5o55552502830NK

    2.0 ~8.0

    30±1

    ±1.0

    1.0

    16

    1.5

    N Female

    Basic Specifications

    Dimension

    55*25*23mm

    Connector   Type

    N Female

    Power

    50W

    Operating   Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

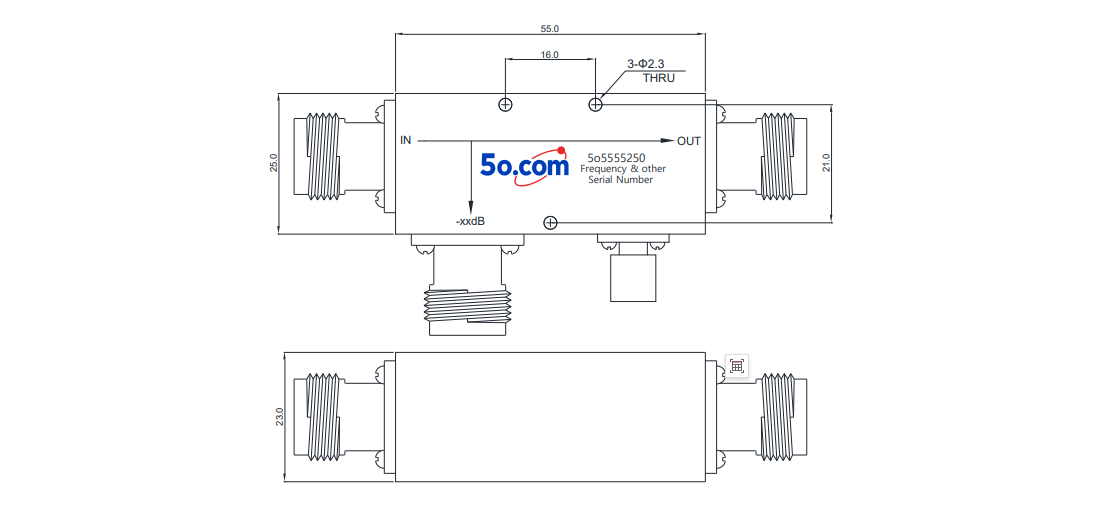

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
