    Directional Coupler 350 ~ 2700MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.



    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5522440035027005NK

    350 ~2700

    5±1.0

    2.05

    18

    1.3

    N Female

    5o5522440035027006NK

    350 ~2700

    6±1.0

    1.7

    18

    1.3

    N Female

    5o5522440035027007NK

    350 ~2700

    7±1.0

    1.4

    18

    1.3

    N Female

    5o55224400350270010NK

    350 ~2700

    10±1.2

    0.8

    18

    1.3

    N Female

    5o55224400350270015NK

    350 ~2700

    15±1.2

    0.35

    18

    1.3

    N Female

    5o55224400350270020NK

    350 ~2700

    20±1.5

    0.25

    18

    1.3

    N Female

    5o55224400350270020NK

    350 ~2700

    25±1.5

    0.2

    18

    1.3

    N Female

    5o55224400350270030NK

    350 ~2700

    30±2.0

    0.2

    18

    1.3

    N Female

    5o55224400350270040NK

    350 ~2700

    40±2.0

    0.2

    12

    1.3

    N Female



    Basic Specifications

    Dimension

    224.4*40*16.5mm

    Connector   Type

    N Female

    Power

    300W

    Operating   Temperature

    -35 ~ +65℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

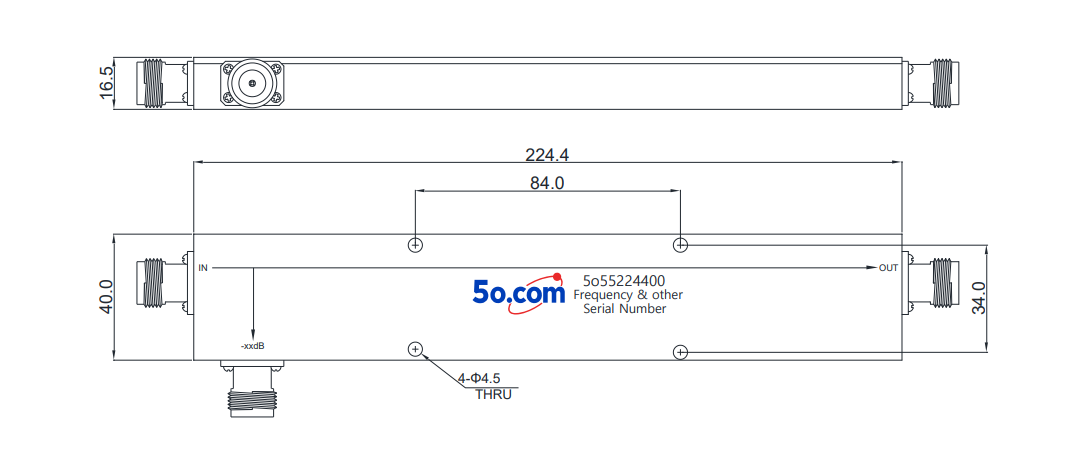

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
