    Directional Coupler 500 ~ 3000MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5518044050030005NK

    500 ~ 3000

    5±1.0

    2.3

    18

    1.3

    N Female

    5o5518044050030006NK

    500 ~ 3000

    6±1.0

    1.8

    18

    1.3

    N Female

    5o5518044050030007NK

    500 ~ 3000

    7±1.0

    1.45

    18

    1.3

    N   Female

    5o55180440500300010NK

    500 ~ 3000

    10±1.2

    0.9

    19

    1.3

    N   Female

    5o55180440500300015NK

    500 ~ 3000

    15±1.2

    0.44

    19

    1.3

    N   Female

    5o55180440500300020NK

    500 ~ 3000

    20±1.2

    0.34

    18

    1.3

    N   Female

    5o55180440500300030NK

    500 ~ 3000

    30±1.5

    0.24

    18

    1.3

    N   Female

    Basic Specifications

    Dimension

    180*44*21mm

    Connector   Type

    N Female

    Power

    300W

    Operating   Temperature

    -40 ~ +80℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

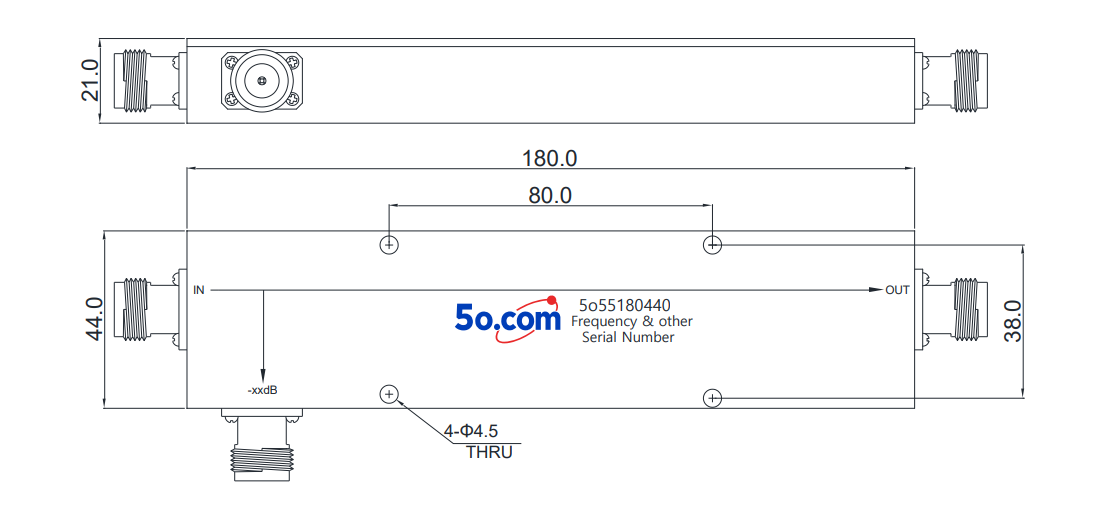

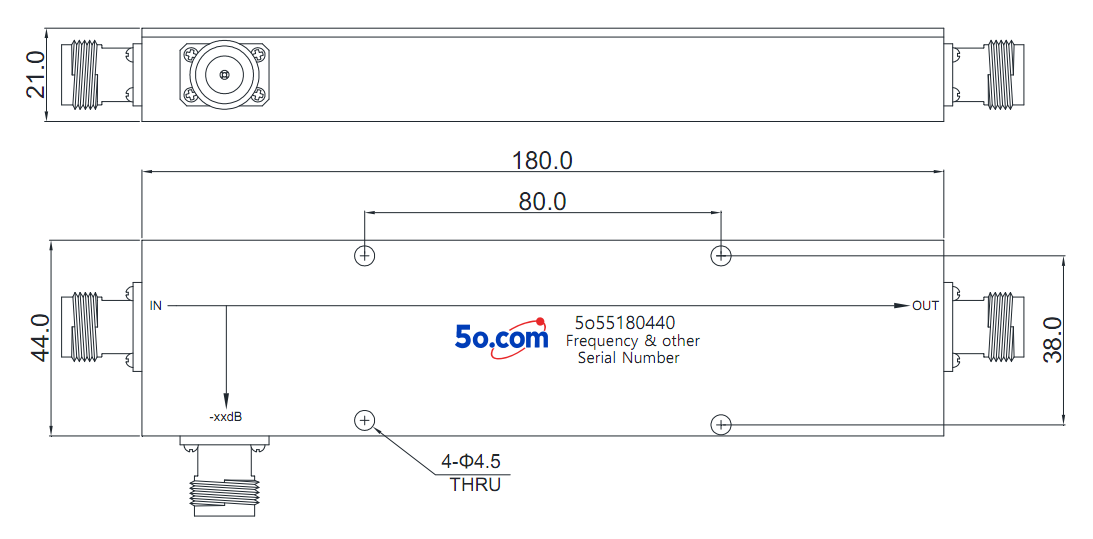

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
