    Directional Coupler 698 ~ 2700MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Nominal

    Coupling(dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector

    Type

    5o5512040069827005NK

    698 ~ 2700

    5±0.8

    2.1

    19

    1.25

    N Female

    5o5512040069827006NK

    698 ~ 2700

    6±0.8

    1.7

    19

    1.25

    N Female

    5o5512040069827007NK

    698 ~ 2700

    7±0.8

    1.4

    19

    1.25

    N Female

    5o5512040069827008NK

    698 ~ 2700

    8±0.8

    1.1

    19

    1.25

    N Female

    5o55120400698270010NK

    698 ~ 2700

    10±1.0

    0.8

    19

    1.25

    N Female

    5o55120400698270013NK

    698 ~ 2700

    13±1.0

    0.5

    19

    1.25

    N Female

    5o55120400698270015NK

    698 ~ 2700

    15±1.0

    0.4

    19

    1.25

    N Female

    5o55120400698270020NK

    698 ~ 2700

    20±1.0

    0.22

    19

    1.25

    N Female

    5o55120400698270030NK

    698 ~ 2700

    30±1.5

    0.2

    19

    1.25

    N Female

    5o55120400698270040NK

    698 ~ 2700

    40±1.5

    0.2

    19

    1.25

    N Female

     Basic Specifications

    Dimension

    120*40*17.5mm

    PIM3(dBc)

    -140dBc @2x43dBm

    Power

    200W

    Operating   Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

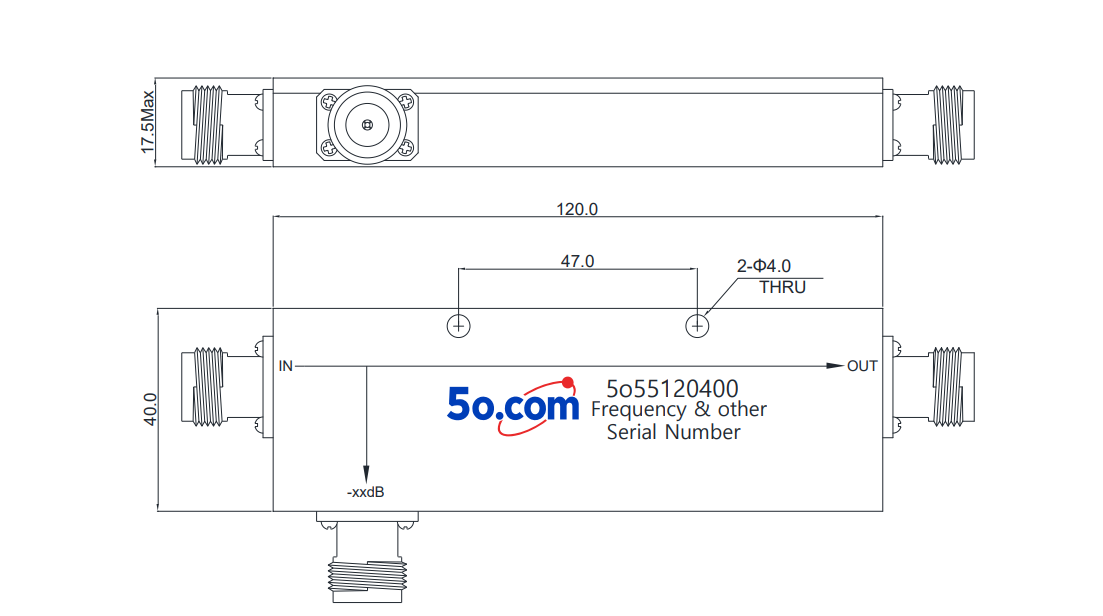

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
