Part   Number

Frequency   Range

 (MHz)

Isolation
  Min(dB)

VSWR
  Max

TX

RX

5o4T4R453U0137143NK

142 ~ 143

137 ~ 138

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max.@Port
  1.4:1 Max. @ANT

5o4T4R453U0146154NK

152   ~ 154

146   ~ 148

TX-TX: 70dB     ANT-TX: 50dB   RX-RX: 25dB

1.25:1   Max.@Port
  1.4:1 Max. @ANT

5o4T4R453U0159165NK

164 ~ 165

159 ~ 160

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max.@Port
  1.4:1 Max. @ANT

5o4T4R453U0167173NK

172 ~ 173

167 ~ 168

TX-TX: 70dB     ANT-TX: 50dB   RX-RX: 25dB

1.25:1   Max.@Port
  1.4:1 Max. @ANT

5o4T4R453U0168174NK

173 ~ 174

168 ~ 169

TX-TX: 70dB   ANT-TX: 50dB   RX-RX: 25dB

1.25:1 Max.@Port
  1.4:1 Max. @ANT

Insertion Loss

9.5dB Max. @TX-ANT

Duplexer

80dB Min. @TX-RX

Number of Channels

N Female @4xTX  N Female @4Xrx  N Female @1xANT

Input Power

TX-ANT 50W/CH

Receiver Multicoupler Amp

Yes

Maximum Amplifier Gain

+6dBm±1dBm   @ANT-RX

Amplifier NF

4.5dB Max.

Alarm mode

Amplifier fault alarm

Standard Voltage Required

AC 110/220V

Weight

~18.5 Kg

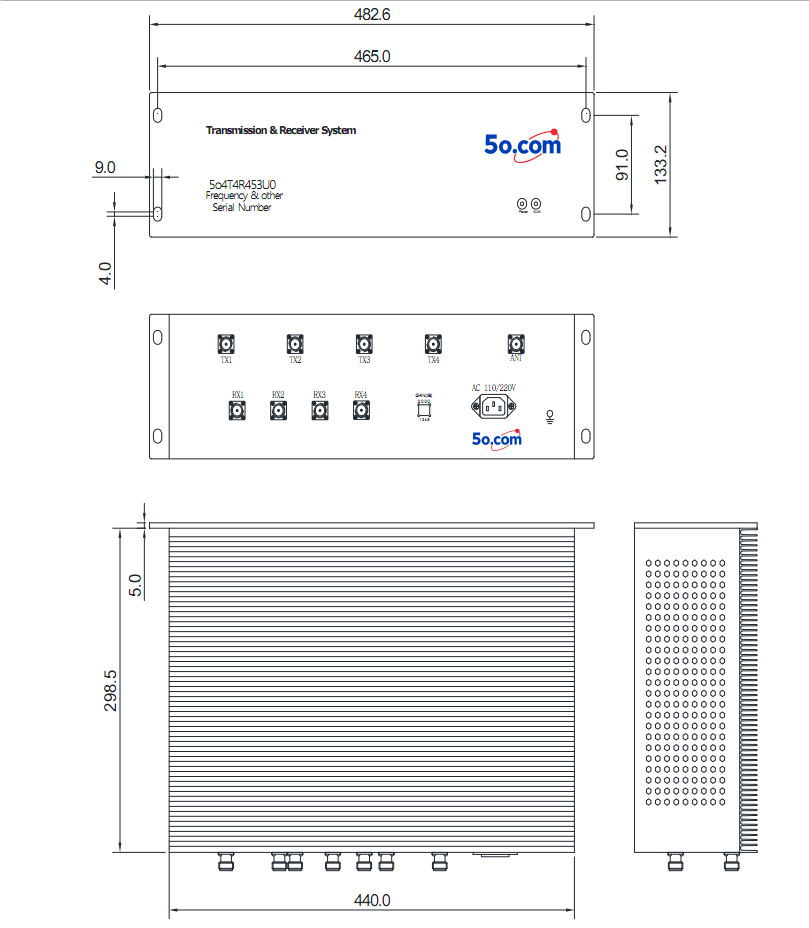

Dimension

3U (482.6*298.5*133.2)mm

Appearance color

Black

Operating Temp

-30~+75℃

Storage temperature

-55~+125℃
