    2 way Combiner / Hybrid Coupler 350 ~ 520MHz

    Application



    ▶Multi-system shared antenna feed system..

    ▶Base station and repeater system.

    ▶Indoor distribution system.

    ▶Radio intercom system.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Isolation
      Min(dB)

    VSWR
      Max

    Connector

    Type

    Power(W)

    5o4T150305700350520NK

    350~ 520

    0.5

    (Coupling 6dB)

    23

    1.2

    N Female

    200(4x50)

    5o4T150305700350520SK

    350 ~ 520

    0.5

    (Coupling 6dB)

    23

    1.2

    SMA Female

    100(4x25)

    5o4T150305700400470NK

    400~ 470

    0.4

    (Coupling 6dB)

    25

    1.2

    N Female

    200(4x50)

    5o4T150305700400470SK

    400~ 470

    0.4

    (Coupling 6dB)

    25

    1.2

    SMA Female

    100(4x25)

    Basic Specifications

    Dimension

    305*70*50mm

    Operating   Temperature

    -40 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55~+125℃

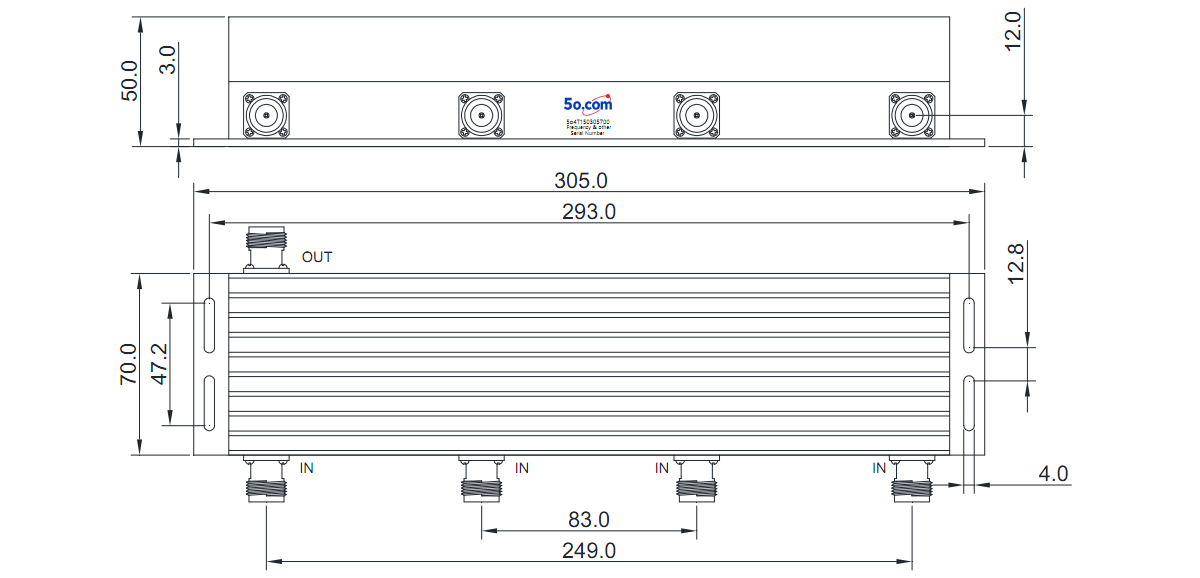

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
