    4 RX Receiver Splitter 350 ~ 520MHz



    Application

    ▶Wireless communication base stations and antenna feed systems.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part   Number

    Frequency   Range

     (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    5o4471U1350370NK

    350 ~ 370

    25dB Min. @RX-RX

    1.2:1 Max. @Port   1.3:1 Max. @ANT

    5o4471U1380400NK

    380 ~ 400

    25dB   Min. @RX-RX

    1.2:1   Max. @Port   1.3:1 Max. @ANT

    5o4471U1410430NK

    410 ~ 430

    25dB Min. @RX-RX

    1.2:1 Max. @Port   1.3:1 Max. @ANT

    5o4471U1450470NK

    450 ~ 470

    25dB   Min. @RX-RX

    1.2:1   Max. @Port   1.3:1 Max. @ANT

    Basic Specifications

    Number of Channels

    N Female @4xRX      N Female @1xANT

    Receiver Multicoupler Amp

    Yes

    Maximum Amplifier Gain

    ANT-RX(+5~+15dBm)±1dBm
      1 2 4 8 Dial Switch Combination, 1db Step Adjustable

    Amplifier NF

    1.5dB Max.

    Alarm mode

    Amplifier fault alarm

    Standard Voltage Required

    DC 12V

    Weight

    ~5.0 Kg

    Dimension

    1U (483*300*45)mm

    Appearance color

    Black

    Operating Temp

    -30~+75℃

    Storage temperature

    -55~+125℃

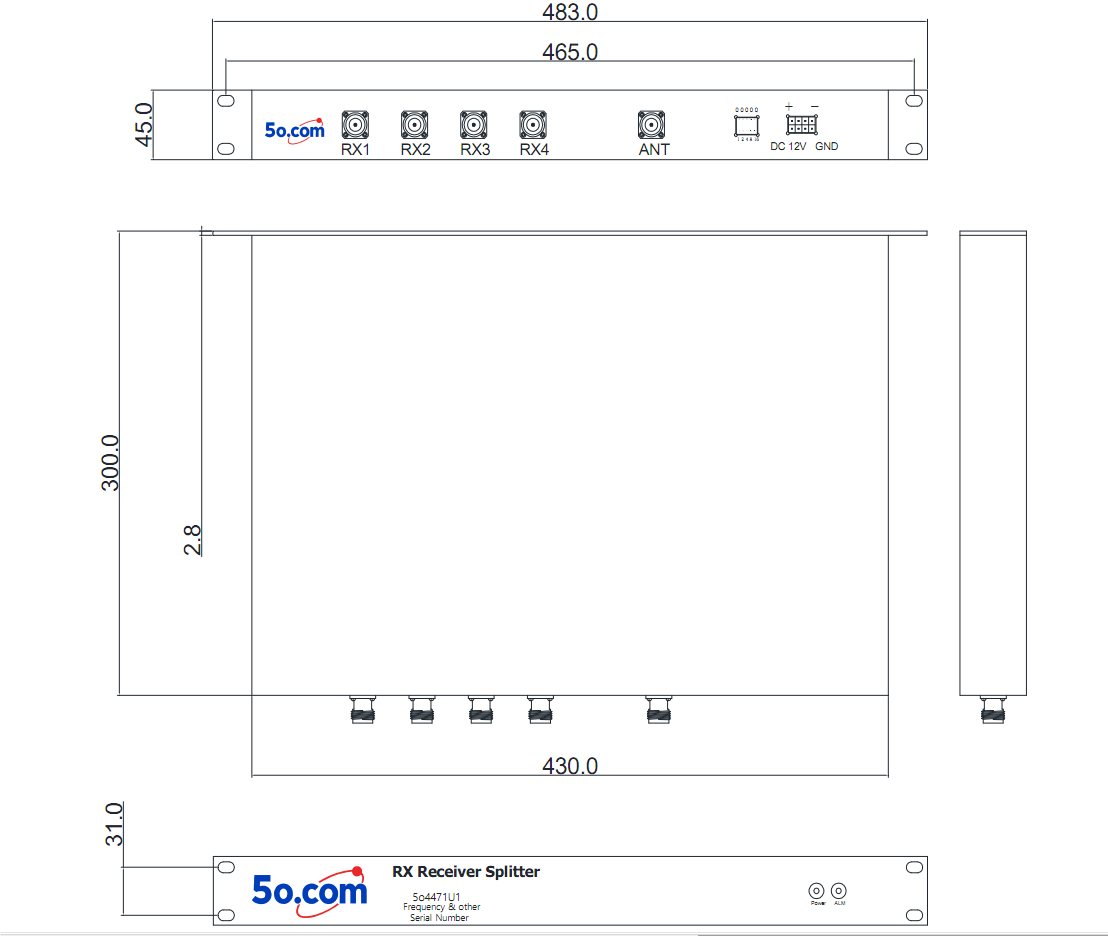

     Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
