    Triplexer 330 ~ 1610MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    Return Loss

    Min(dB)

    Power

    (W)

    Connector

    Type

    5o4115012403301610SK

    CH1

    330 ~ 450

    30

    0.6

    0.8

    16

    50

    SMA Female

    CH2

    850 ~ 980

    1.2

    CH3

    1150 ~ 1610

    1.2

    5o4115012403301610NK

    CH1

    330 ~ 450

    30

    0.6

    0.8

    16

    50

    N Female

    CH2

    850 ~ 980

    1.2

    CH3

    1150 ~ 1610

    1.2

    Basic Specifications

    Dimension

    150*124*41mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

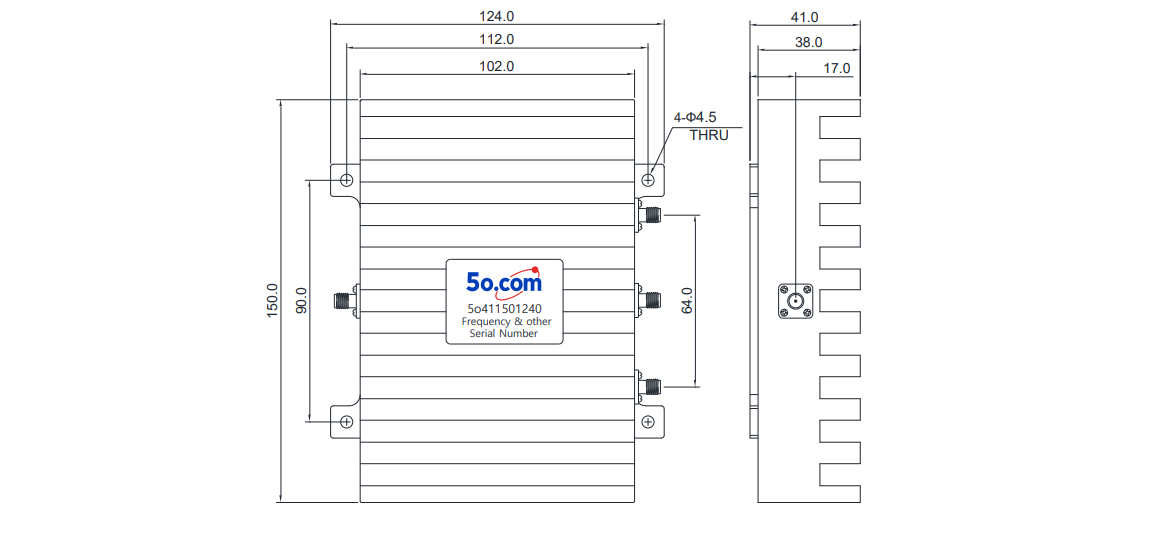

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
