    Triplexer 1750 ~ 2300MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o41135185017502300NK

    CH1

    1750 ~ 1850

    100

    0.5

    0.8

    1.3

    N Female

    CH2

    2025 ~ 2120

    CH3

    2200 ~ 2300

    5o41135185017502300SK

    CH1

    1750 ~ 1850

    100

    0.5

    0.8

    1.3

    SMA Female

    CH2

    2025 ~ 2120

    CH3

    2200 ~ 2300

    Basic Specifications

    Dimension

    135*185*43mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

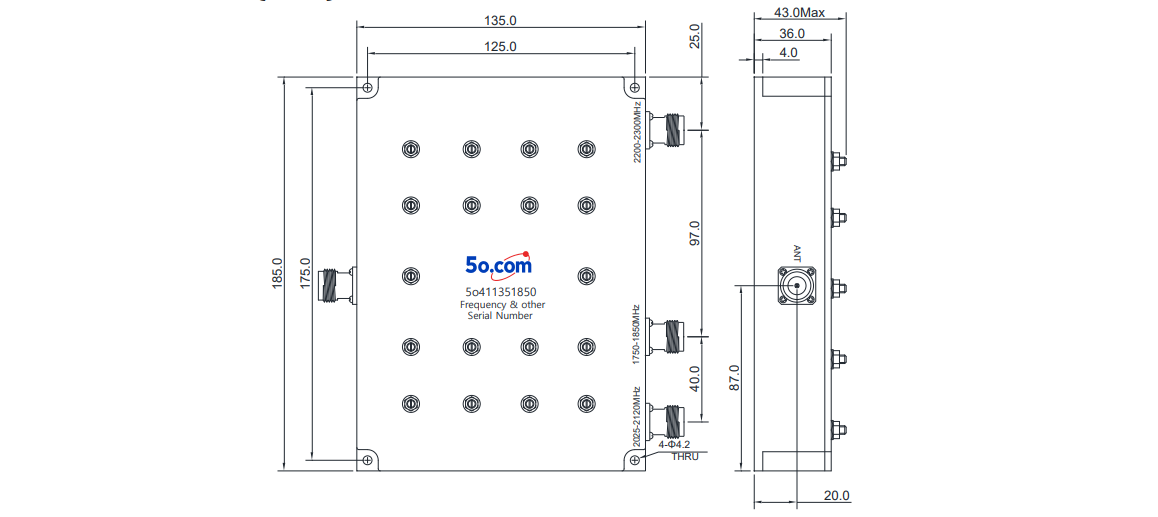

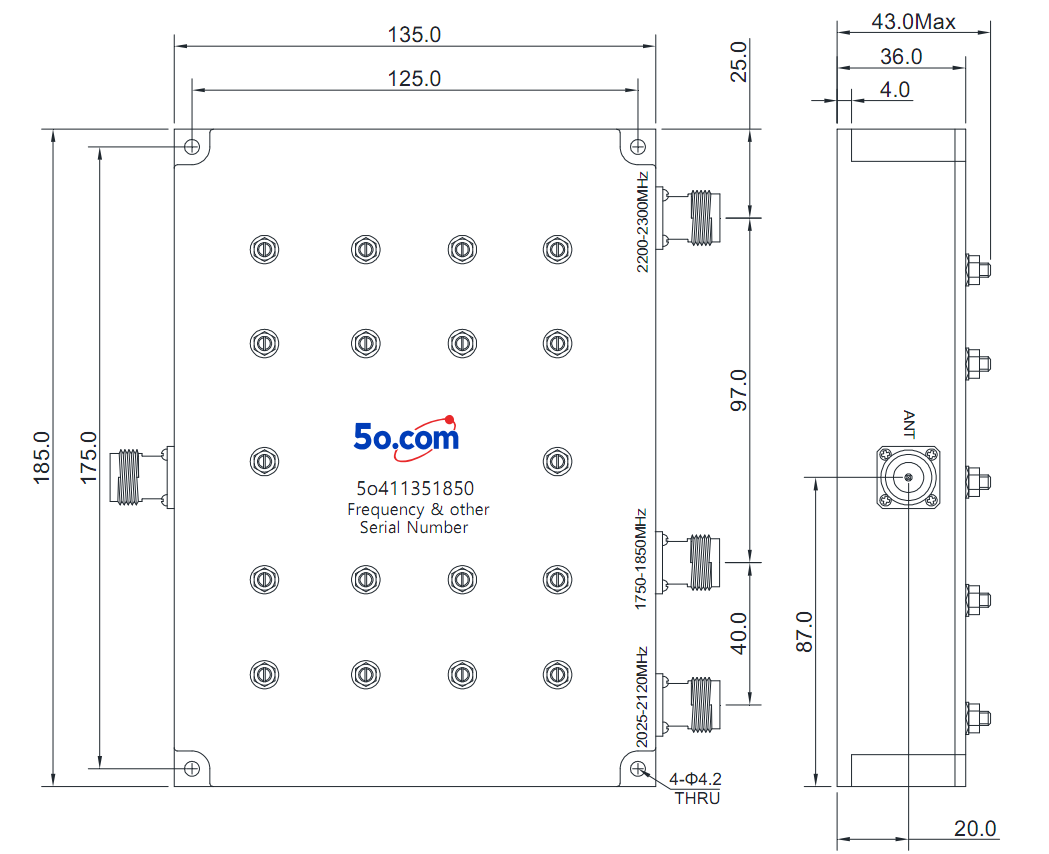

    Overall Dimension(mm)



    Tolerances: ±2% unless otherwise stated.
