    Triplexer 1710 ~ 1920MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    Rejection

    VSWR
      Max

    Connector

    Type

    5o41120120017101920SK

    CH1

    1710 ~ 1735

    50

    1.0

    1.5

    50dB@DC～1610MHz
      50dB@1805~2700MHz

    1.3

    N Female

    CH2

    1805 ~ 1830

    50dB@DC～1735MHz
      50dB@1880～2700MHz

    CH3

    1880 ~ 1920

    50dB@DC～1830MHz
      50dB@2100～2700MHz

    5o41120120017101920NK

    CH1

    1710 ~ 1735

    50

    1.0

    1.5

    50dB@DC～1610MHz
      50dB@1805~2700MHz

    1.3

    SMA Female

    CH2

    1805 ~ 1830

    50dB@DC～1735MHz
      50dB@1880～2700MHz

    CH3

    1880 ~ 1920

    50dB@DC～1830MHz
      50dB@2100～2700MHz

    Basic Specifications

    Dimension

    120*120*38mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

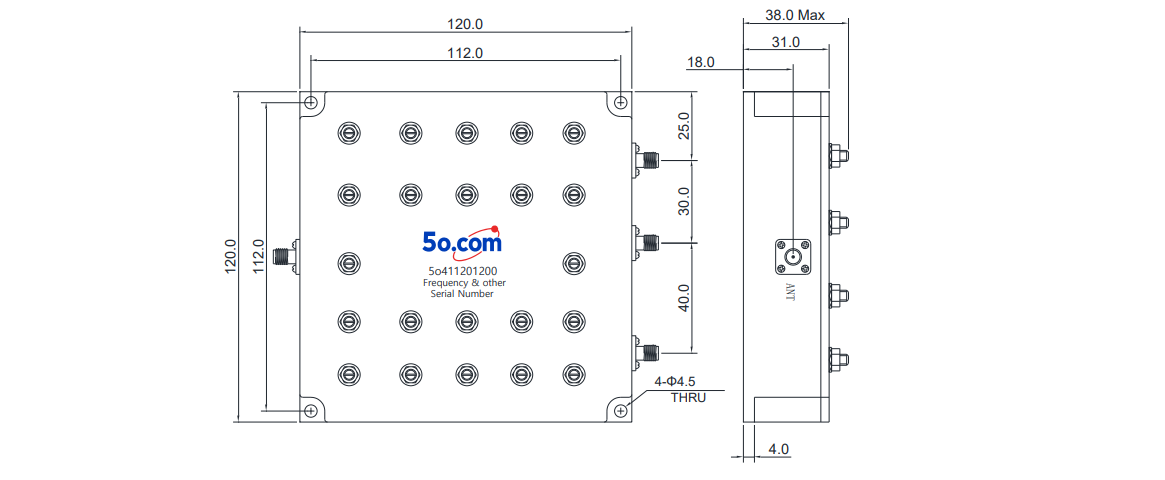

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
