    Triplexer 850 ~ 3000MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o411008608503000NK

    CH1

    850 ~ 1000

    30

    0.5

    1.22

    100

    N Female

    CH2

    1700 ~ 2000

    CH3

    2500 ~ 3000

    5o411008608503000SK

    CH1

    850 ~ 1000

    30

    0.5

    1.22

    100

    SMA Female

    CH2

    1700 ~ 2000

    CH3

    2500 ~ 3000

    Basic Specifications

    Dimension

    100*86*43mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

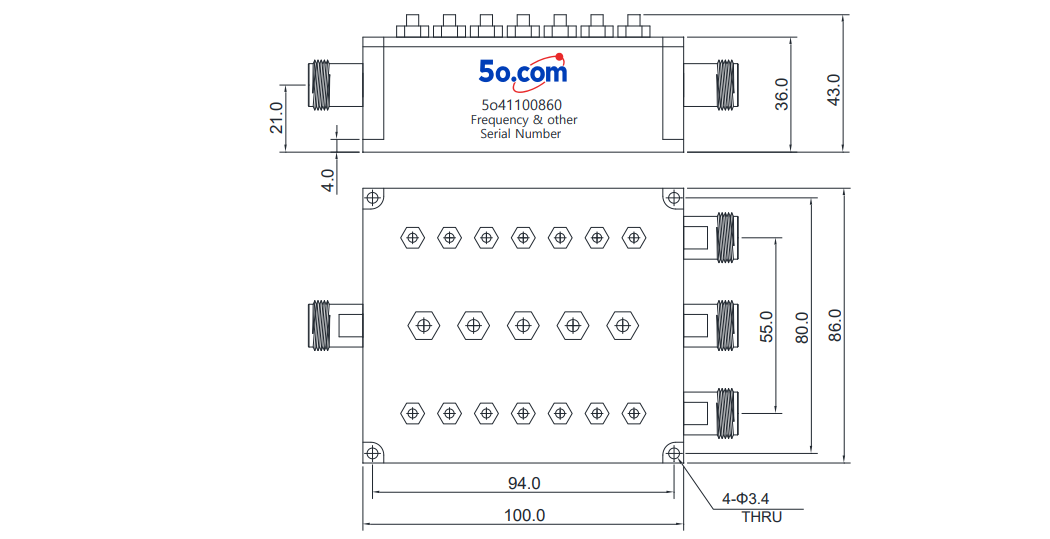

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
