    Triplexer 136 ~ 470MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o411001400136470NK

    CH1

    136 ~ 174

    70

    0.6

    0.8

    1.4

    50

    N Female

    CH2

    380 ~ 395

    1.0

    2.0

    CH3

    450 ~ 470

    1.0

    2.0

    5o411001400136470SK

    CH1

    136 ~ 174

    70

    0.6

    0.8

    1.4

    50

    SMA Female

    CH2

    380 ~ 395

    1.0

    2.0

    CH3

    450 ~ 470

    1.0

    2.0

    Basic Specifications

    Dimension

    100*140*35mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

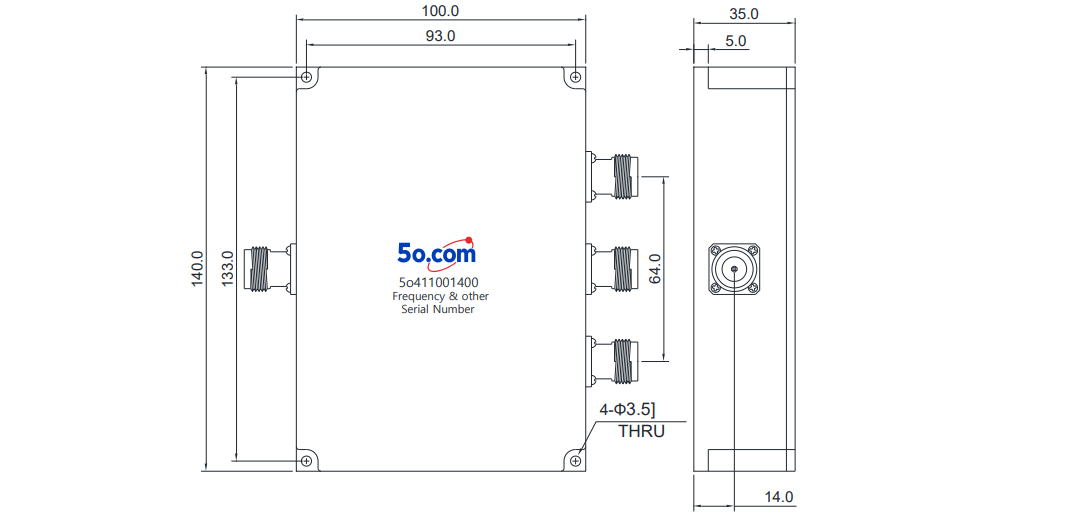

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
