    Duplexer 2050 ~ 2170MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power(W)

    Connector

    Type

    5o409976020502170SK

    CH1

    2110 ~ 2170

    60

    2.0

    1.5

    100

    SMA Female

    CH2

    2050 ~ 2060

    5o409976020502170NK

    CH1

    2110 ~ 2170

    60

    2.0

    1.5

    100

    N Female

    CH2

    2050 ~ 2060

    Basic Specifications

    Dimension

    99*76*27.5mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

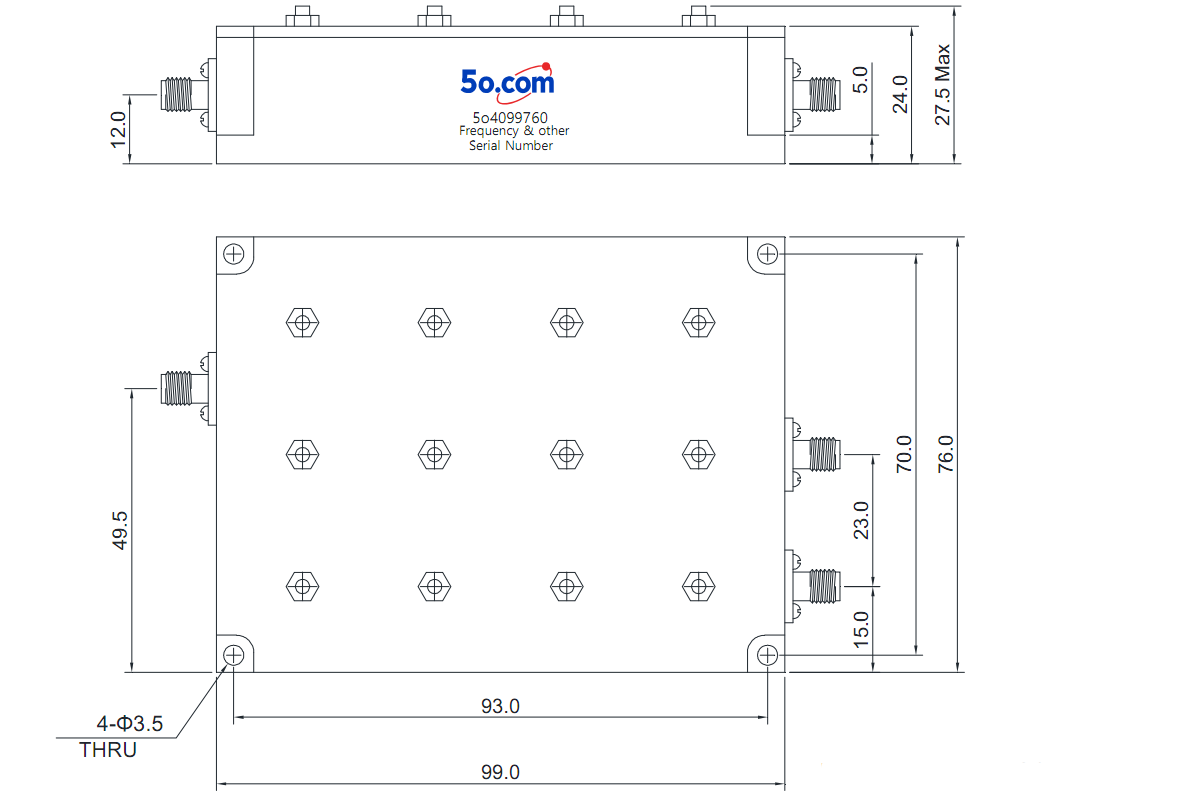

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated
