    Duplexer 30 ~ 2700MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o4071910302700SK

    CH1

    30 ~ 520

    45

    0.7

    0.8

    1.45

    50

    SMA Female

    CH2

    698 ~2700

    5o4071910302700NK

    CH1

    30 ~ 520

    45

    0.7

    0.8

    1.45

    50

    N Female

    CH2

    698 ~2700

    Basic Specifications

    Dimension

    71*91*22mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

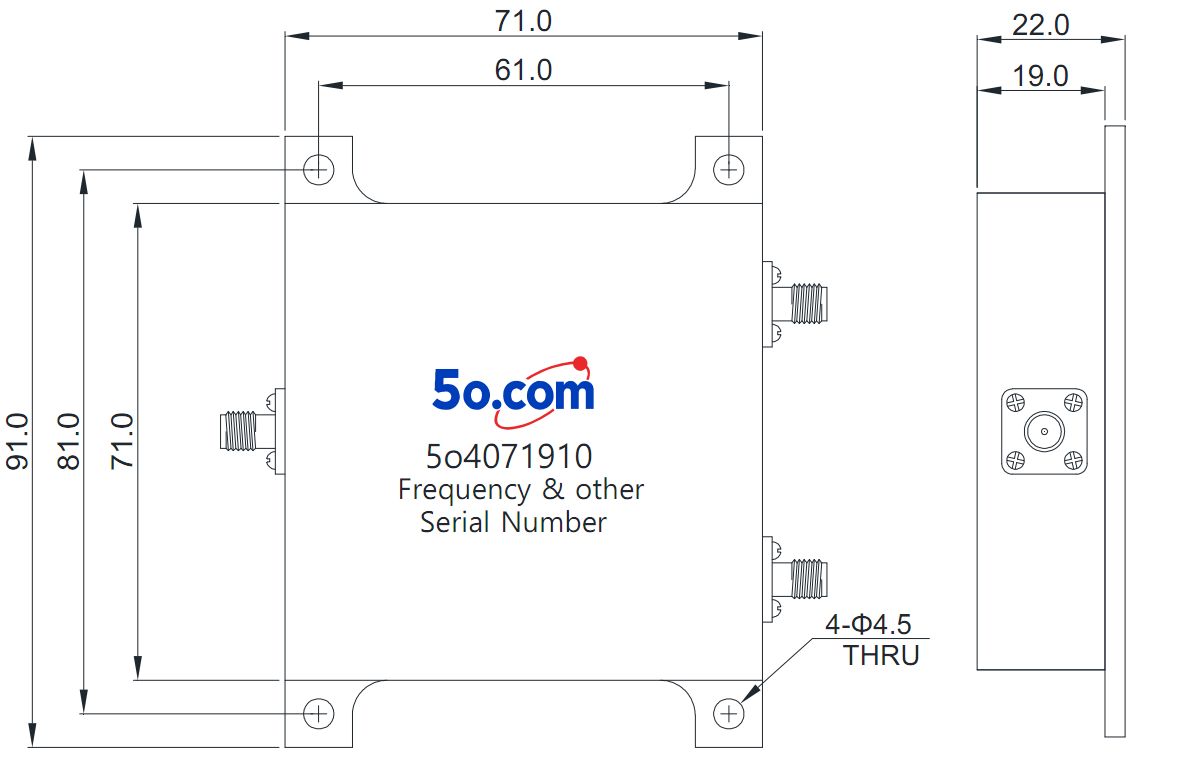

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated
