    Duplexer 136 ~ 470MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o4058540136470NK

    CH1

    136 ~ 174

    30

    1.0

    1.5

    5

    N Female

    CH2

    400 ~ 470

    5o4058540136470SK

    CH1

    136 ~ 174

    30

    1.0

    1.5

    5

    SMA Female

    CH2

    400 ~ 470

    Basic Specifications

    Dimension

    58*54*20mm

    Impedance

    50Ω

    Power

    5W

    Operating Temperature

    -10 ~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

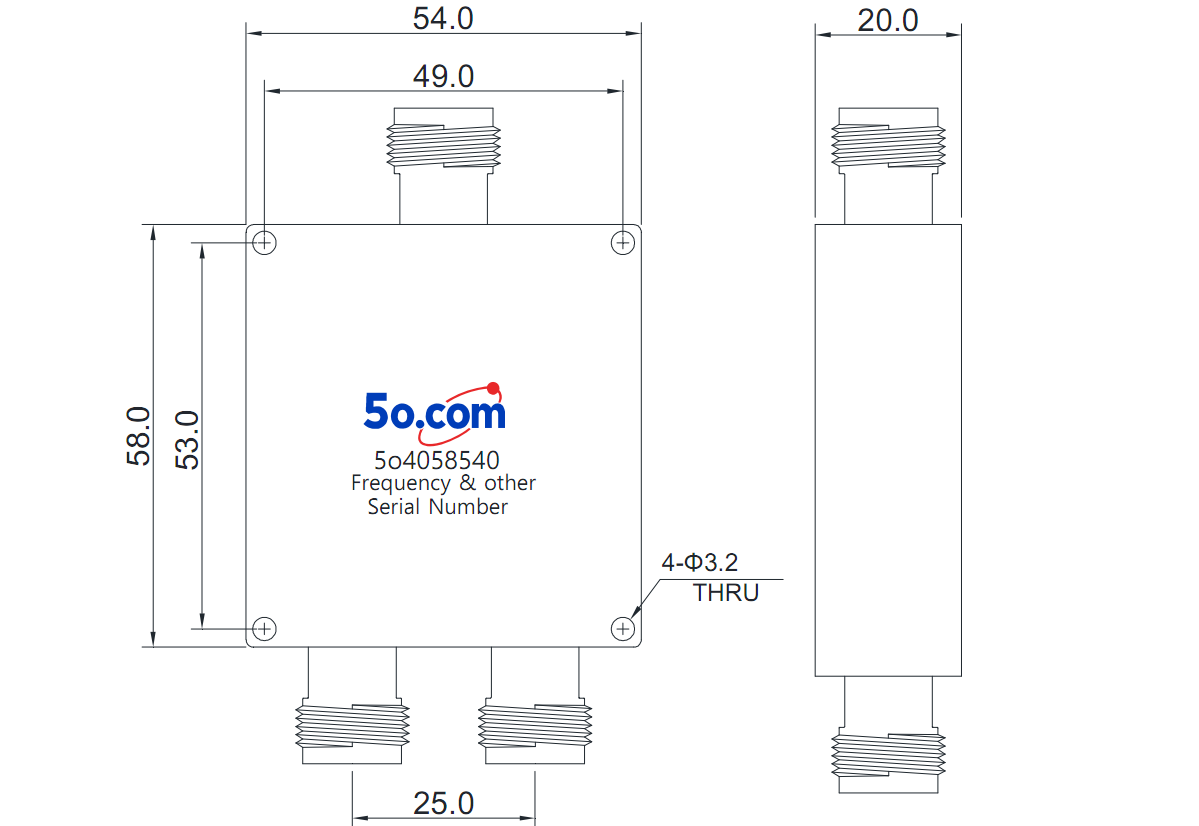

    Overall Dimension(mm)




     Tolerances: ±2% unless otherwise stated
