    Duplexer 148 ~ 174MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power(W)

    Connector

    Type

    5o4048219201481526NK

    CH1

    148

    80

    1.8

    1.3

    100

    N Female

    CH2

    152.6

    5o40482192014651511NK

    CH1

    146.5

    80

    1.8

    1.3

    100

    N Female

    CH2

    151.1

    5o4048219201512515585NK

    CH1

    151.25

    80

    1.8

    1.3

    100

    N Female

    CH2

    155.85

    5o4048219201582516285NK

    CH1

    158.25

    80

    1.8

    1.3

    100

    N Female

    CH2

    162.85

    5o4048219201637516835NK

    CH1

    163.75

    80

    1.8

    1.3

    100

    N Female

    CH2

    168.35

    5o4048219201651695NK

    CH1

    165

    80

    1.8

    1.3

    100

    N Female

    CH2

    169.5

    5o4048219201694174NK

    CH1

    169.4

    80

    1.8

    1.3

    100

    N Female

    CH2

    174

    Basic Specifications

    Dimension

    482.6*192*177.6mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

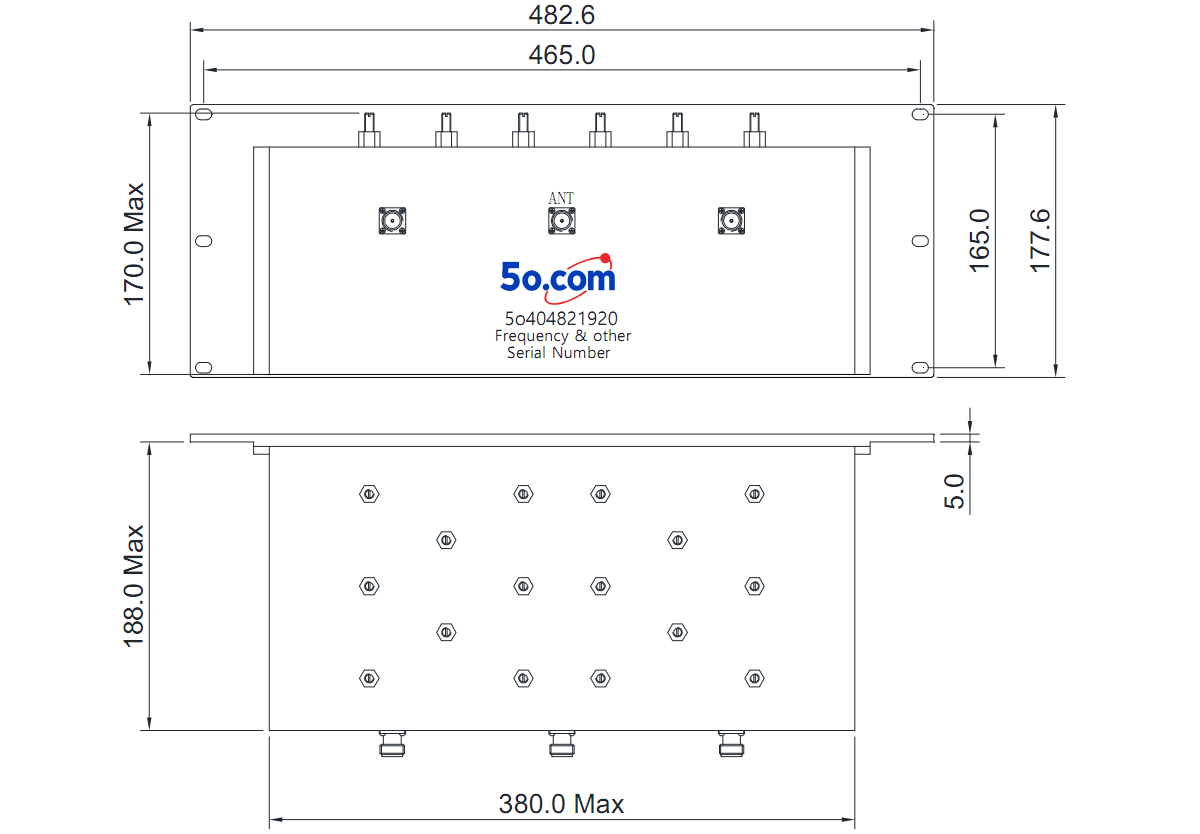

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
