    Duplexer 12.5 ~ 13.4GHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power(W)

    Connector

    Type

    5o40438201250013400SK

    CH1

    12500 ~ 12900

    50

    2.5

    1.5

    20

    SMA Female

    CH2

    13100 ~ 13400

    Basic Specifications

    Dimension

    43*82*11.5mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

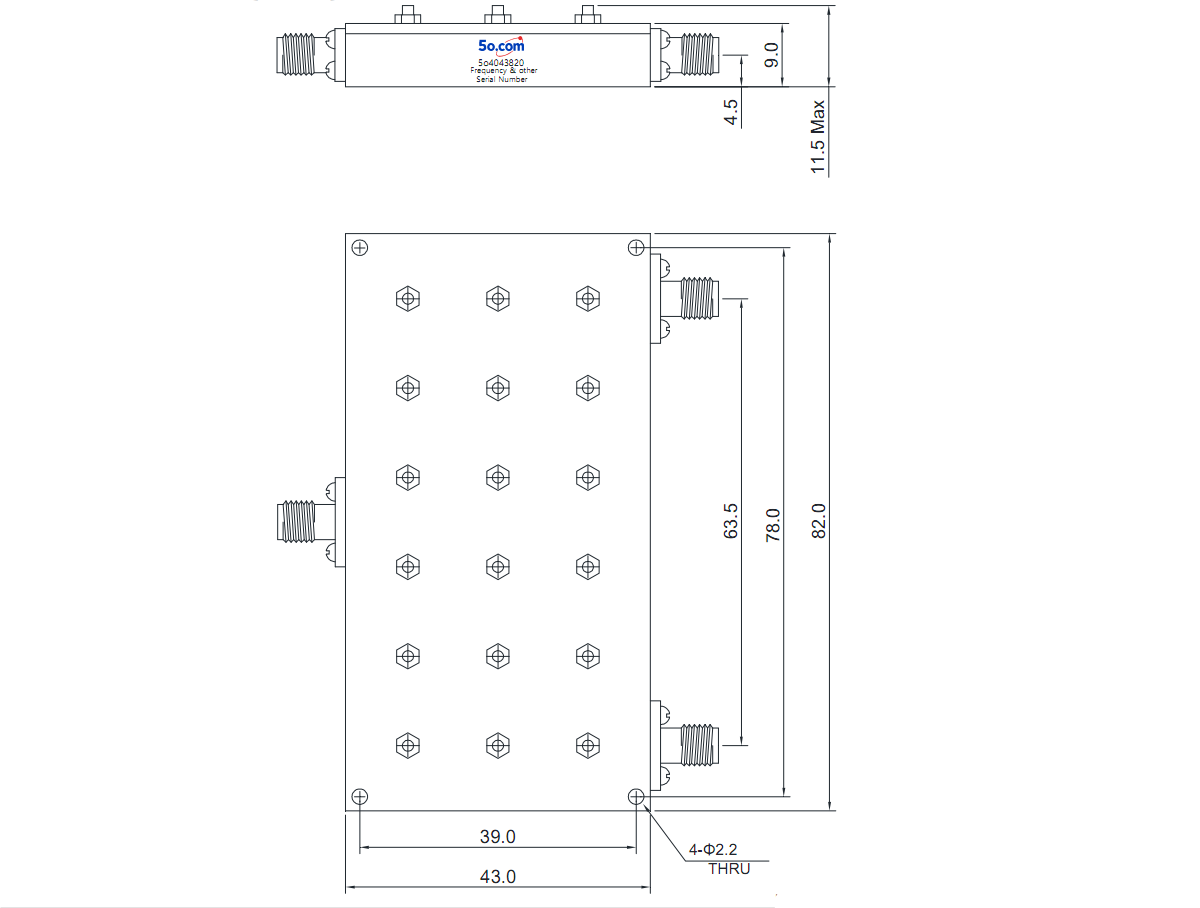

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
