    Duplexer 45.5 ~ 103.3MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector Type

    5o40405304551033BK

    CH1

    45.5 ~ 69.0

    15

    3.0

    1.5

    2

    BNC Female

    CH2

    80.0 ~   103.3

    5o40405304551033SK

    CH1

    45.5 ~ 69.0

    15

    3.0

    1.5

    2

    SMA Female

    CH2

    80.0 ~   103.3

    5o40405304551033NK

    CH1

    45.5 ~ 69.0

    15

    3.0

    1.5

    2

    N Female

    CH2

    80.0 ~ 103.3

    Basic Specifications

    Dimension

    40*53*20mm

    Impedance

    50Ω

    Power

    2W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

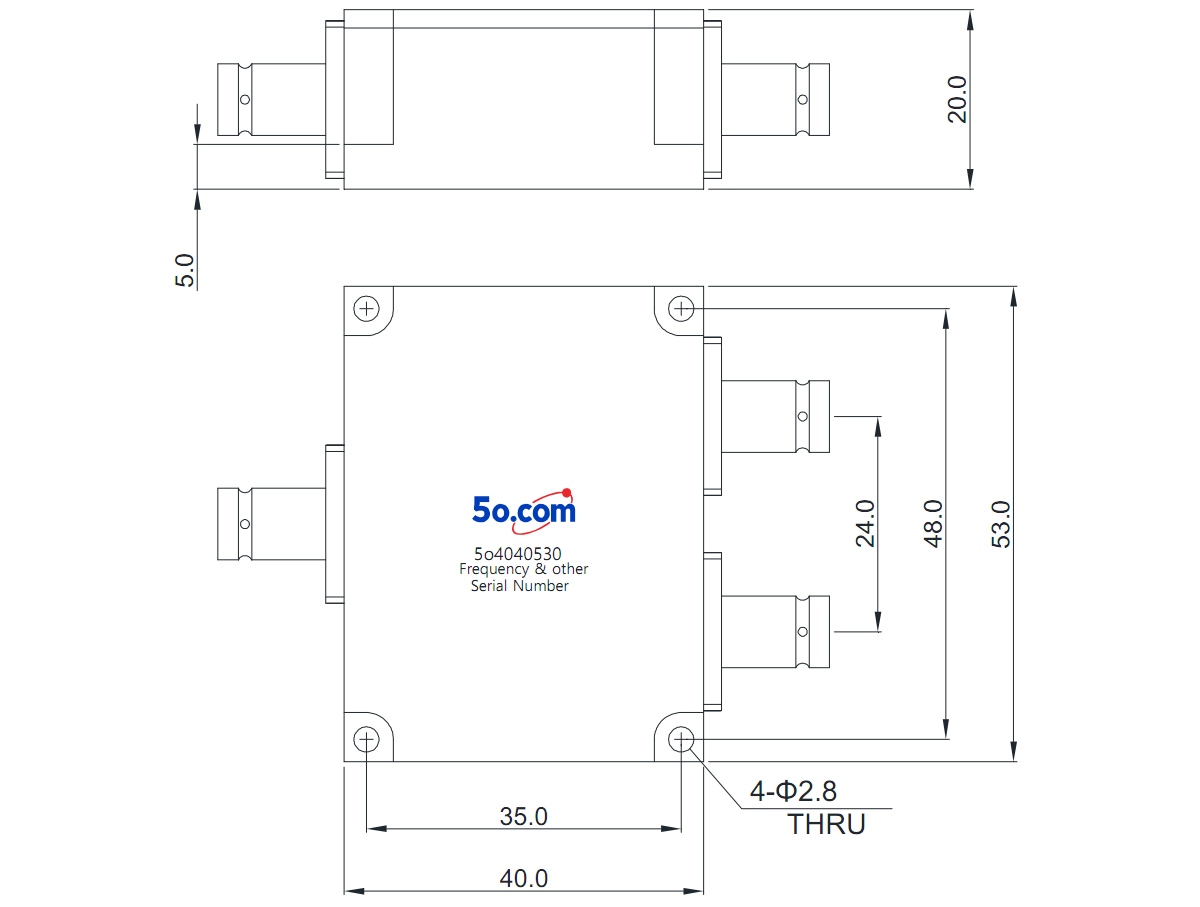

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
