    Duplexer 850 ~ 1990MHz

     Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o40352608501990SK

    CH1

    850 ~ 960

    55

    2.0

    1.5

    SMA Female

    CH2

    1700 ~ 1990

    Basic Specifications

    Dimension

    35*26*10mm

    Impedance

    50Ω

    Power

    2W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

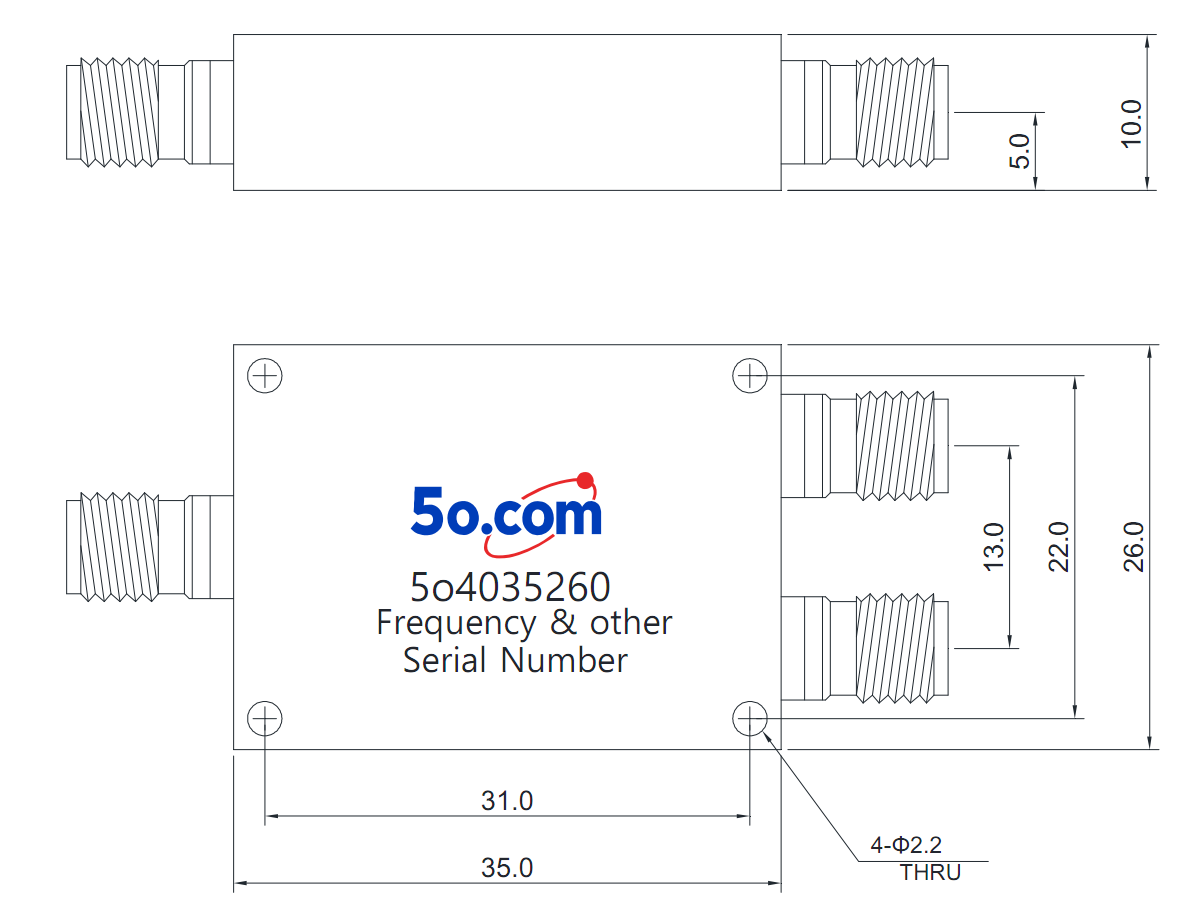

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
