    Duplexer 448.2 ~ 469.8MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o40342174044824698NK

    CH1

    448.2 ~ 454.8

    60

    1.5

    1.3

    50

    N Female

    CH2

    463.2~469.8

    5o40342174044824698SK

    CH1

    448.2 ~ 454.8

    60

    1.5

    1.3

    50

    SMA Female

    CH2

    463.2~469.8

    Basic Specifications

    Dimension

    342*174*69mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

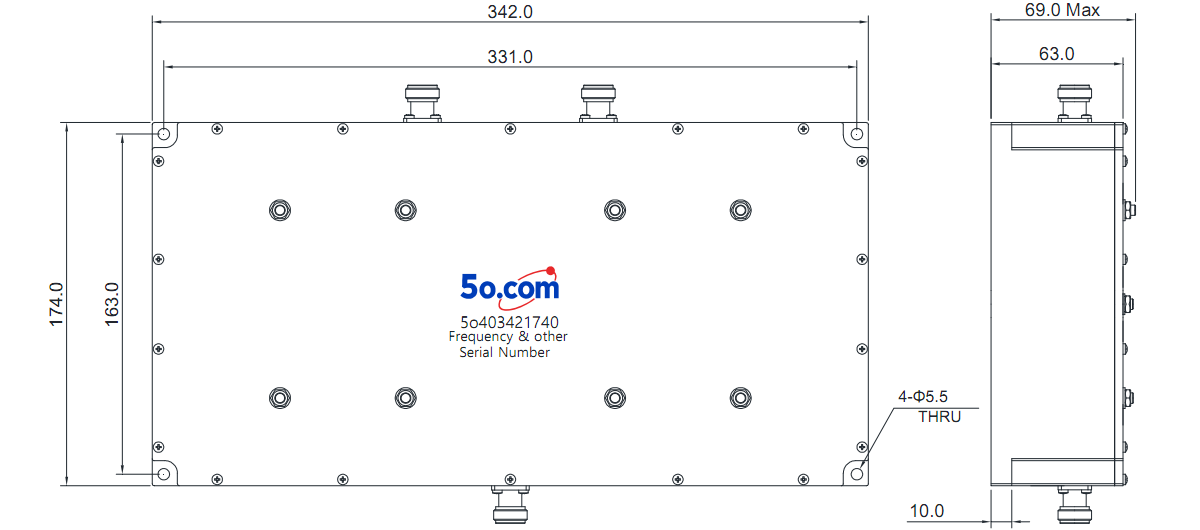

    Overall Dimension(mm)






    Tolerances: ±2% unless otherwise stated.
