    Duplexer 140 ~ 170MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    (dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o403102190140155SK

    CH1

    140 ~ 145

    80

    0.8

    1.5

    1.3

    SMA Female

    CH2

    150 ~ 155

    5o403102190145160NK

    CH1

    145 ~ 150

    80

    0.8

    1.5

    1.3

    N Female

    CH2

    155 ~ 160

    5o403102190147162NK

    CH1

    147 ~ 152

    80

    0.8

    1.5

    1.3

    N Female

    CH2

    157 ~ 162

    5o403102190150165NK

    CH1

    150 ~ 155

    80

    0.8

    1.5

    1.3

    N Female

    CH2

    160 ~ 165

    5o40310219015251675NK

    CH1

    152.5 ~ 157.5

    80

    0.8

    1.5

    1.3

    N Female

    CH2

    162.5 ~ 167.5

    5o403102190155170NK

    CH1

    155 ~ 160

    80

    0.8

    1.5

    1.3

    N Female

    CH2

    165 ~ 170

    Basic Specifications

    Dimension

    310*219*156mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

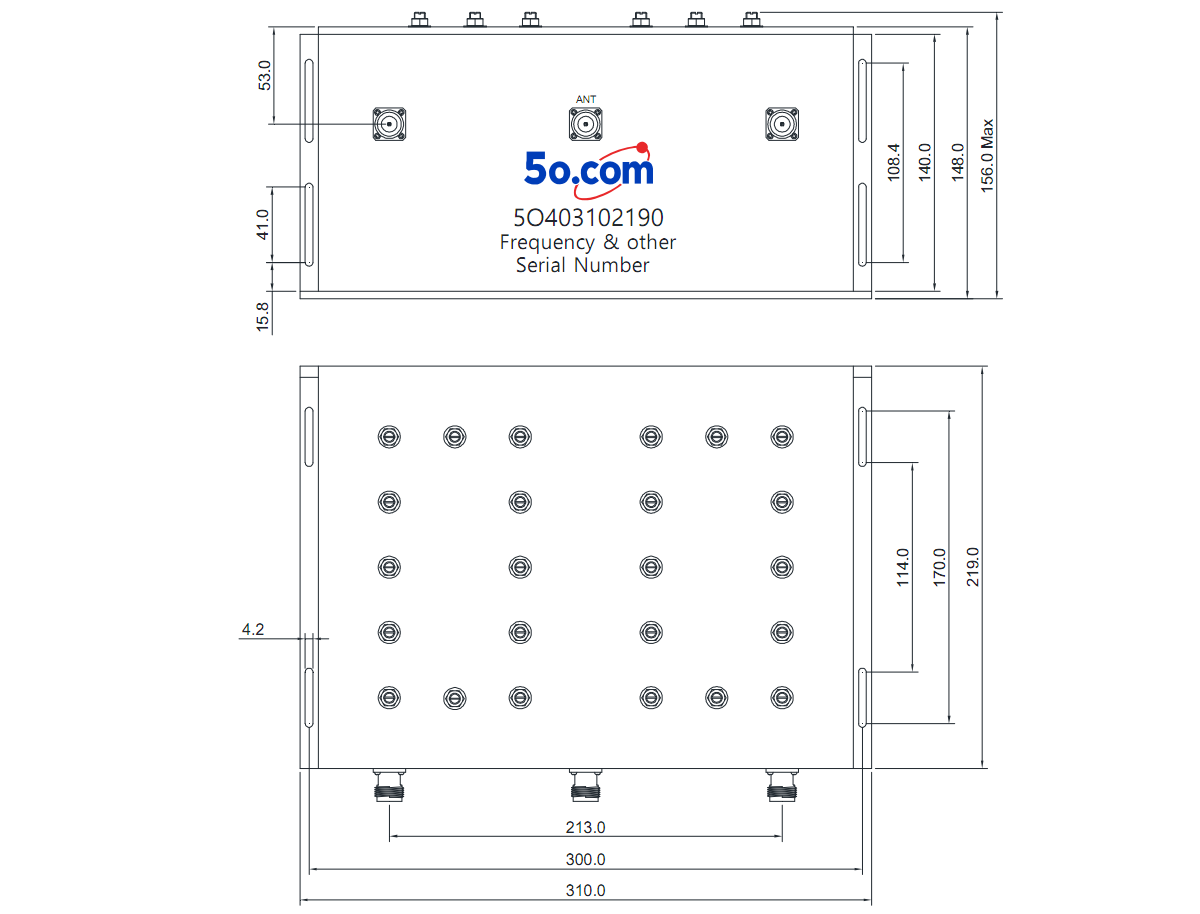

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
