    Duplexer 449 ~ 485MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    Rejection

    VSWR
      Max

    Connector

    Type

    5o402901200449485SK

    CH1

    449 ~ 452

    65

    1.0dB

    (Ripple<0.3)

    65dB @0.47-2.0GHz

    1.3

    SMA Female

    CH2

    470 ~ 485

    0.6dB

    (Ripple<0.3)

    65dB @DC-452MHz

    5o402901200449485NK

    CH1

    449 ~ 452

    65

    1.0dB

    (Ripple<0.3)

    65dB @0.47-2.0GHz

    1.3

    N Female

    CH2

    470 ~ 485

    0.6dB

    (Ripple<0.3)

    65dB @DC-452MHz

    Basic Specifications

    Dimension

    290*120*49mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

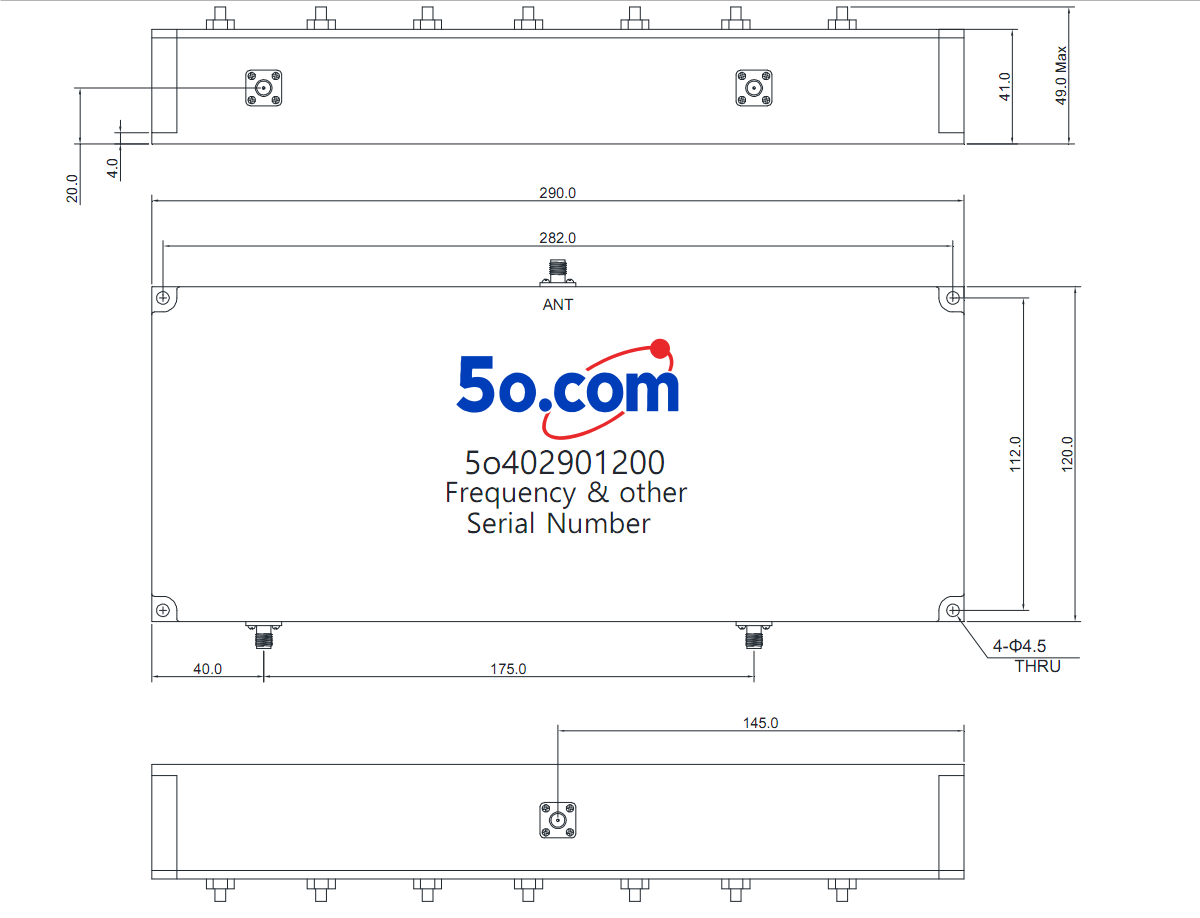

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
