    Duplexer 461 ~ 470MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion  Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o402901000461470NK

    CH1

    467 ~ 470

    75

    1.0

    2.5

    1.3

    N Female

    CH2

    461 ~ 464

    5o402901000461470SK

    CH1

    467 ~ 470

    75

    1.0

    2.5

    1.3

    SMA Female

    CH2

    461 ~ 464

    Basic Specifications

    Dimension

    290*100*75mm

    Impedance

    50Ω

    Power

    80W

    Operating Temperature

    -30 ~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

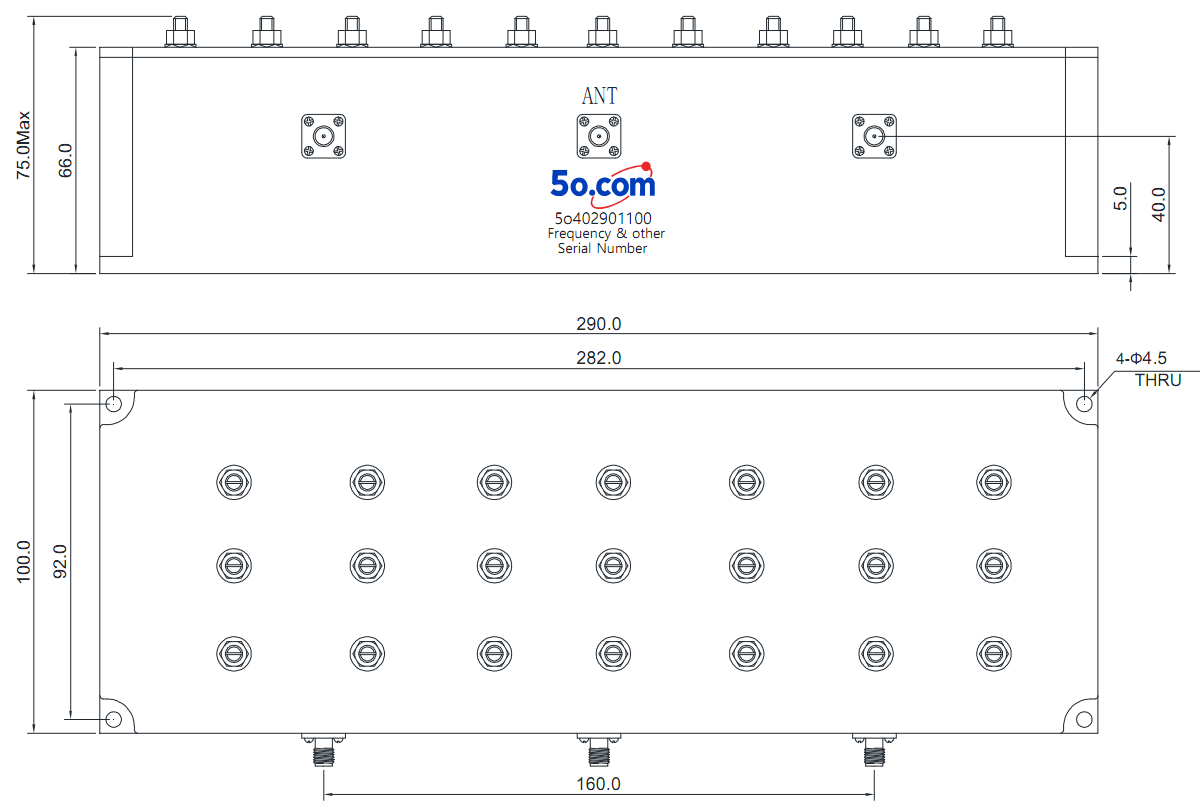

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
