    Duplexer 300 ~ 380MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Ripple
      Max(dB)

    Insertion  Loss
      Max(dB)

    VSWR
      Max

    Phase Consistency

    Connector Type

    5o402752000300380DK

    CH1

    300 ~ 320

    75

    0.4

    0.5

    1.3

    ≤2°

    7/16 Female

    CH2

    360 ~ 380

    ≤2°

    5o402752000300380NK

    CH1

    300 ~ 320

    75

    0.4

    0.5

    1.3

    ≤2°

    N Female

    CH2

    360 ~ 380

    ≤2°

    Basic Specifications

    Dimension

    275*200*85mm

    Impedance

    50Ω

    Power

    TX 400W

    Operating Temperature

    -25 ~ +55℃

    RX 10W

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

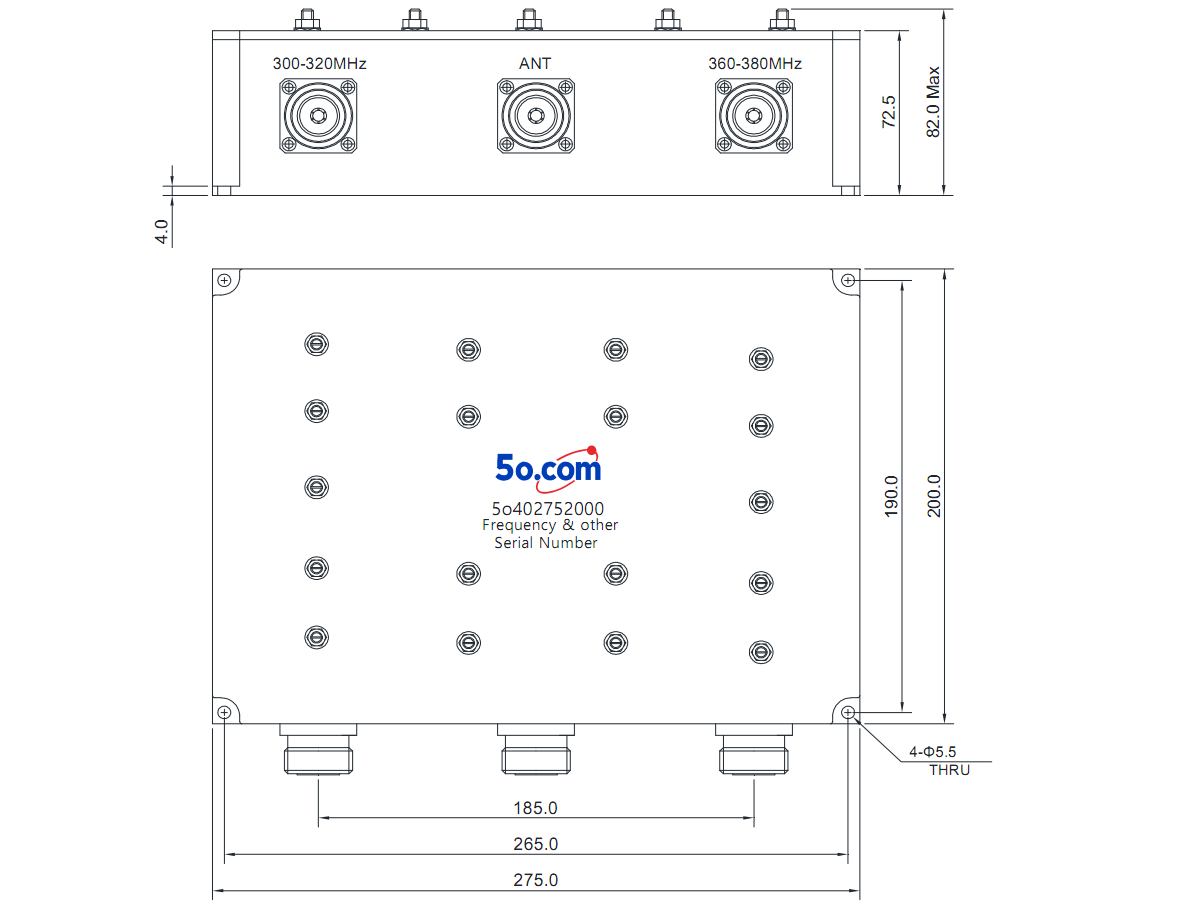

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
