    Duplexer 876 ~ 960MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    PIM 3

    VSWR
      Max

    Connector Type

    5o402651400876960NK

    CH1

    921 ~ 960

    75

    1.6

    Ripple 1.3

    -140dBc@2×43dBm

    1.22

    N Female

    CH2

    876 ~ 915

    5o402651400876960SK

    CH1

    921 ~ 960

    75

    1.6

    Ripple 1.3

    -110dBc@2×43dBm

    1.22

    SMA Female

    CH2

    876 ~ 915

    Basic Specifications

    Dimension

    265*140*43mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

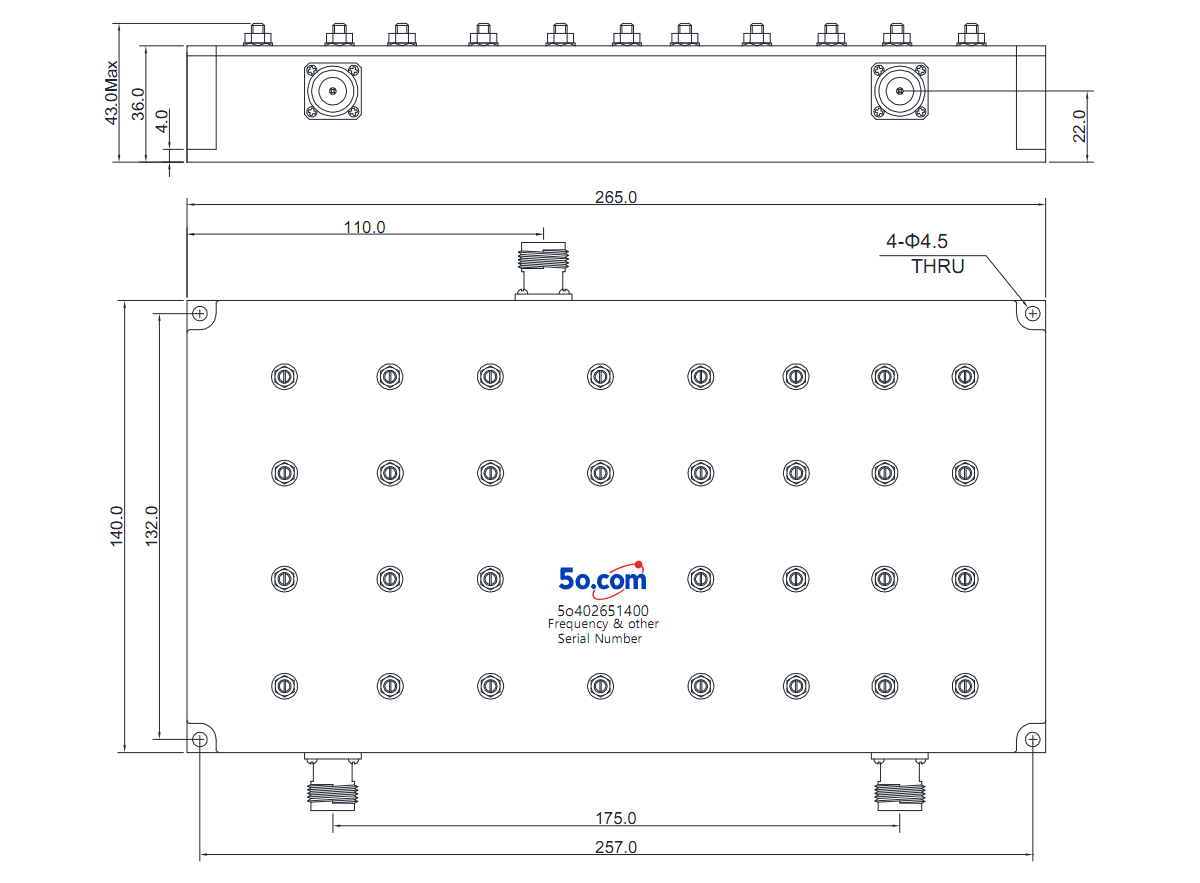

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
