    Duplexer 240 ~ 380MHz

     Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Ripple
      Max(dB)

    Rejection
      Min

    VSWR
      Max

    Connector

    Type

    5o402601900240380NK

    CH1

    340 ~ 380

    1.0

    0.6

    80dB @40~320MHz

    80dB @410~1800MHz

    50dB @1800~2200MHz

    1.3

    N Female

    CH2

    240 ~ 270

    80dB@40~220MHz

    80dB@290~1800MHz

    50dB@1800~2200MHz

    5o402601900240380SK

    CH1

    340 ~ 380

    1.0

    0.6

    80dB @40~320MHz

    80dB @410~1800MHz

    50dB @1800~2200MHz

    1.3

    SMA Female

    CH2

    240 ~ 270

    80dB@40~220MHz

    80dB@290~1800MHz

    50dB@1800~2200MHz

    Basic Specifications

    Dimension

    260*190*65mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +75℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

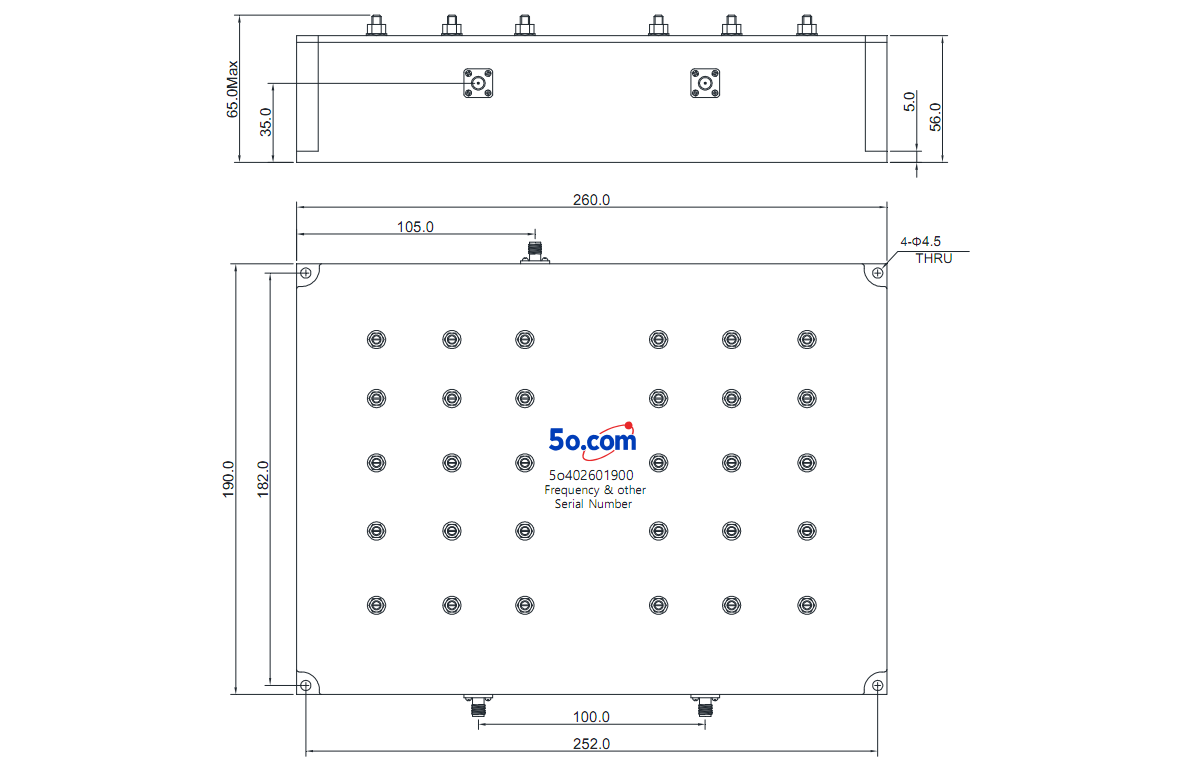

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated
