    Duplexer 351 ~ 366MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    Ripple
      Max(dB)

    Rejection
      Min

    VSWR
      Max

    Connector

    Type

    5o402451650351366NK

    CH1

    361 ~ 366

    2.0

    1.0

    80dB @351~356MHz

    70dB @376~430MHz

    50dB @356~358.5MHz

    1.3

    N Female

    CH2

    351 ~ 356

    80dB @361~366MHz

    70dB @DC~341MHz

    50dB @358.5~361MHz

    5o402451650351366SK

    TX

    361 ~ 366

    2.0

    1.0

    80dB @351~356MHz

    70dB @376~430MHz

    50dB @356~358.5MHz

    1.3

    SMA Female

    RX

    351 ~ 356

    80dB @361~366MHz

    70dB @DC~341MHz

    50dB @358.5~361MHz

    Basic Specifications

    Dimension

    245*165*85mm

    Impedance

    50Ω

    Power

    80W

    Operating Temperature

    -30 ~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

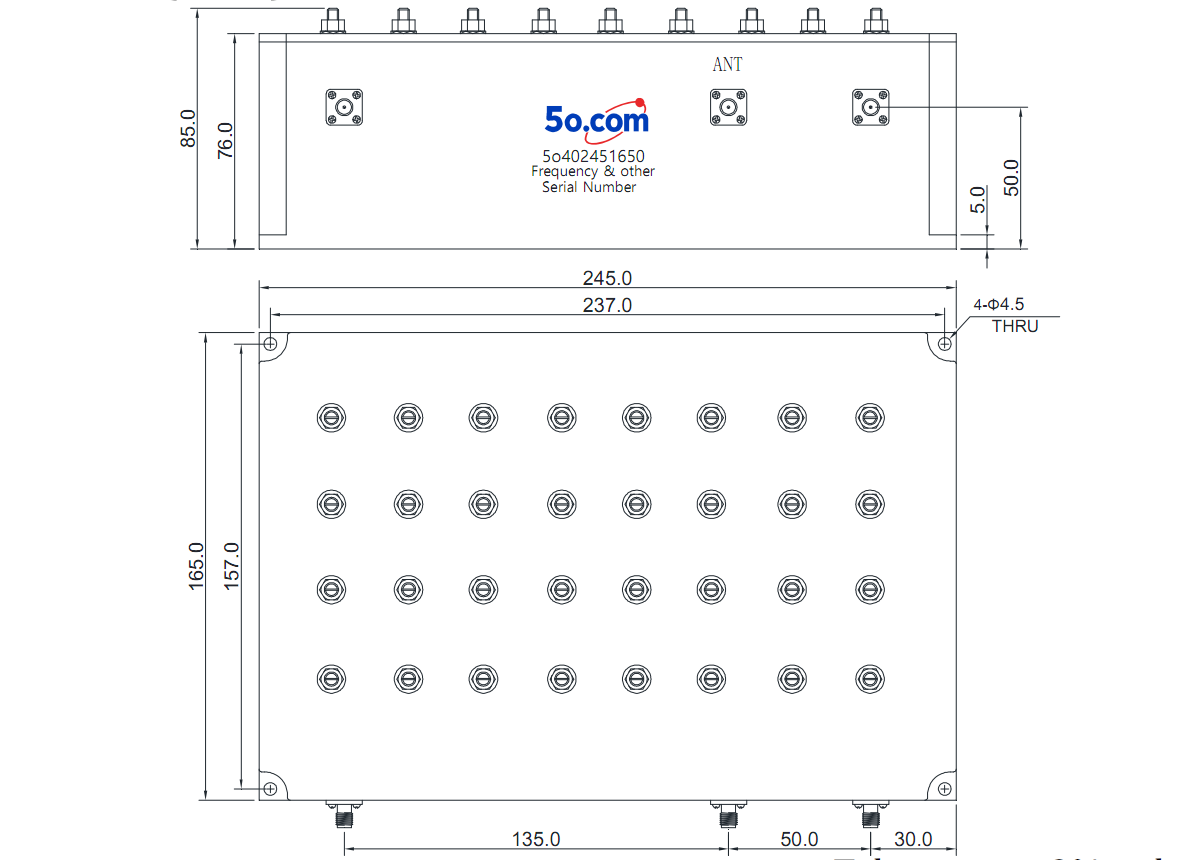

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
