    Duplexer 600 ~ 2200MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o402201250617698SK

    CH1

    663 ~ 698

    80

    50dB @748~5000MHz

    1.5

    1.3

    SMA Female

    CH2

    617 ~ 652

    50dB @DC~600MHz

    5o402201250703803NK

    CH1

    758 ~ 803

    80

    50dB @862~5000MHz

    1.5

    1.3

    N Female

    CH2

    703 ~ 748

    50dB @DC~652MHz

    5o40220125017101880SK

    CH1

    1805~1880

    80

    50dB @1980~5000MHz

    1.5

    1.3

    SMA Female

    CH2

    1710~1785

    50dB @DC~1650MHz

    Basic Specifications

    Dimension

    220*125*43mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

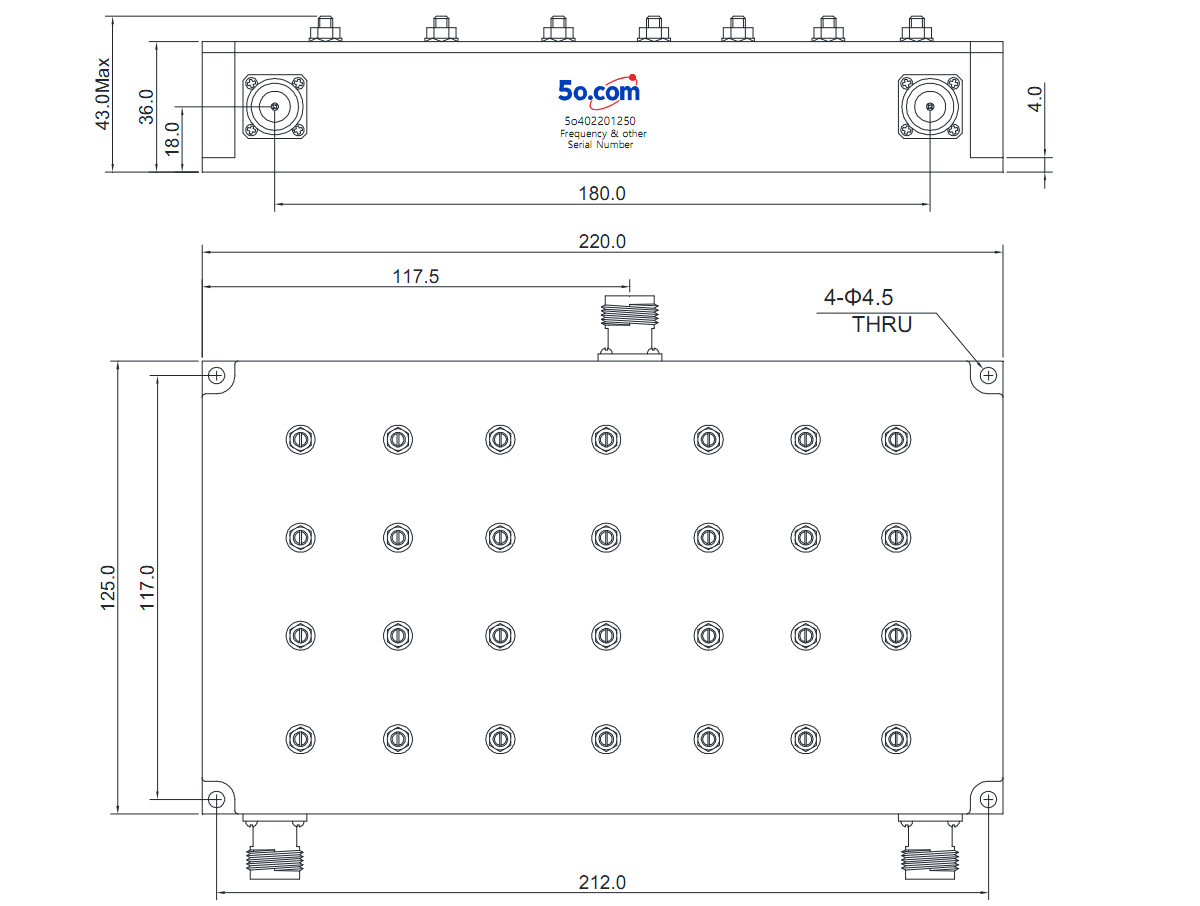

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
