    download 5o402001020

    Duplexer 1521 ~ 1529MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o40200102015211529SK

    CH1

    1521

    80

    2.2

    1.3

    50

    SMA Female

    CH2

    1529

    5o40200102015211529NK

    CH1

    1521

    80

    2.2

    1.3

    50

    N Female

    CH2

    1529

    Basic Specifications

    Dimension

    200*102*43mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

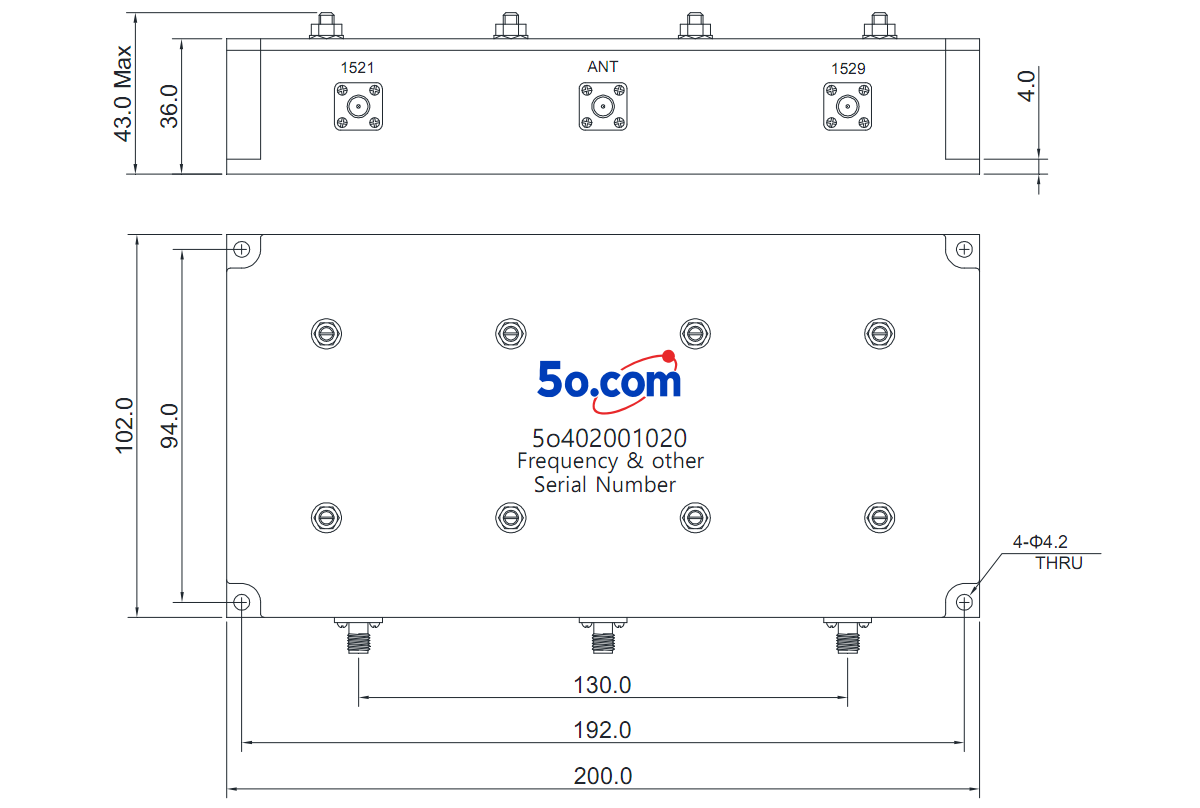

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
