    Duplexer 703 ~ 803MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector

    Type

    5o401851550703803SK

    CH1

    703 ~ 748

    100

    1.2

    1.5

    1.3

    CW: 80W

    Peak: 500W

    SMA Female

    CH2

    758 ~ 803

    5o401851550703803NK

    CH1

    703 ~ 748

    100

    1.2

    1.5

    1.3

    CW: 80W

    Peak: 500W

    N Female

    CH2

    758 ~ 803

    Basic Specifications

    Dimension

    185*155*47mm

    Impedance

    50Ω

    Power

    CW: 80W

    Peak: 500W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

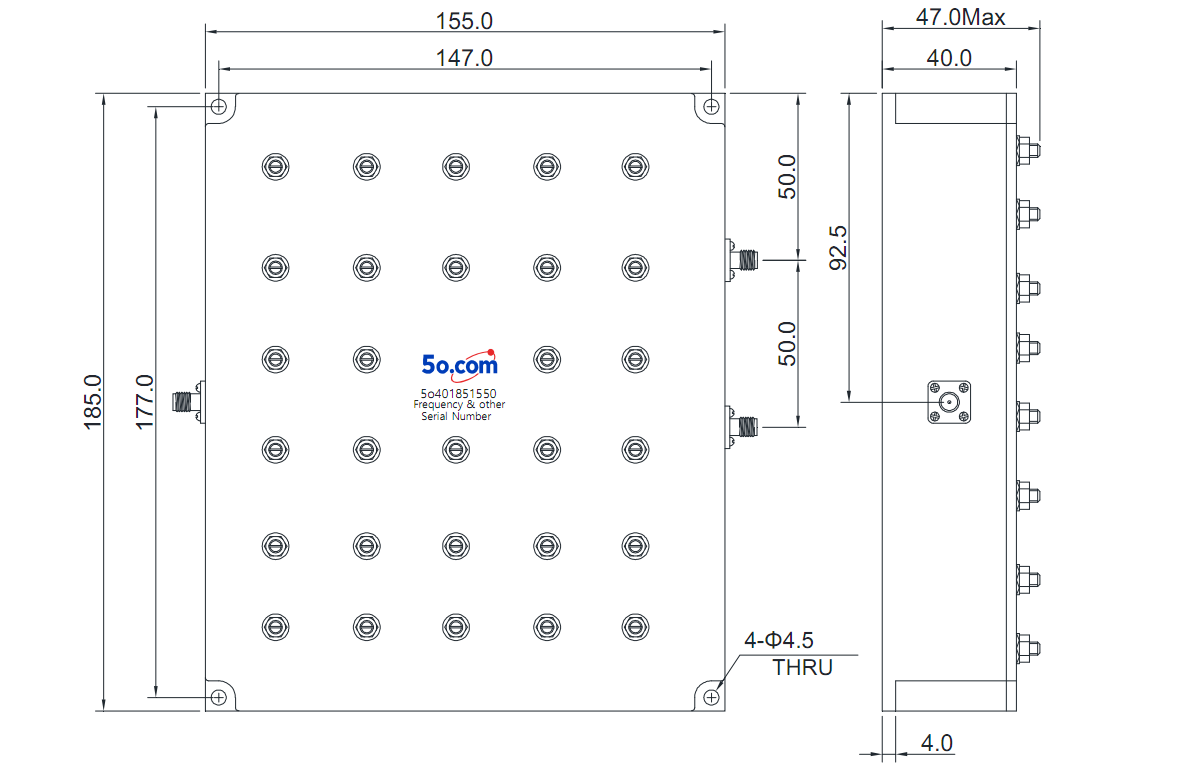

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
