    Duplexer 400 ~ 470MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    (dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o401851400400415NK

    CH1

    400 ~ 405

    80

    0.8

    1.8

    1.3

    N Female

    CH2

    410 ~ 415

    5o401851400410425NK

    CH1

    410 ~ 415

    80

    0.8

    1.8

    1.3

    N   Female

    CH2

    420 ~ 425

    5o401851400412427NK

    CH1

    412 ~ 417

    80

    0.8

    1.8

    1.3

    N Female

    CH2

    422 ~ 427

    5o401851400440455SK

    CH1

    440 ~ 445

    80

    0.8

    1.8

    1.3

    SMA   Female

    CH2

    450 ~ 455

    5o4018514004515465NK

    CH1

    451.5 ~ 456.5

    80

    0.8

    1.8

    1.3

    N Female

    CH2

    461.5 ~ 466.5

    5o401851400455470NK

    CH1

    465 ~ 470

    80

    0.8

    1.8

    1.3

    N   Female

    CH2

    455 ~ 460

    Basic Specifications

    Dimension

    185*140*73mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

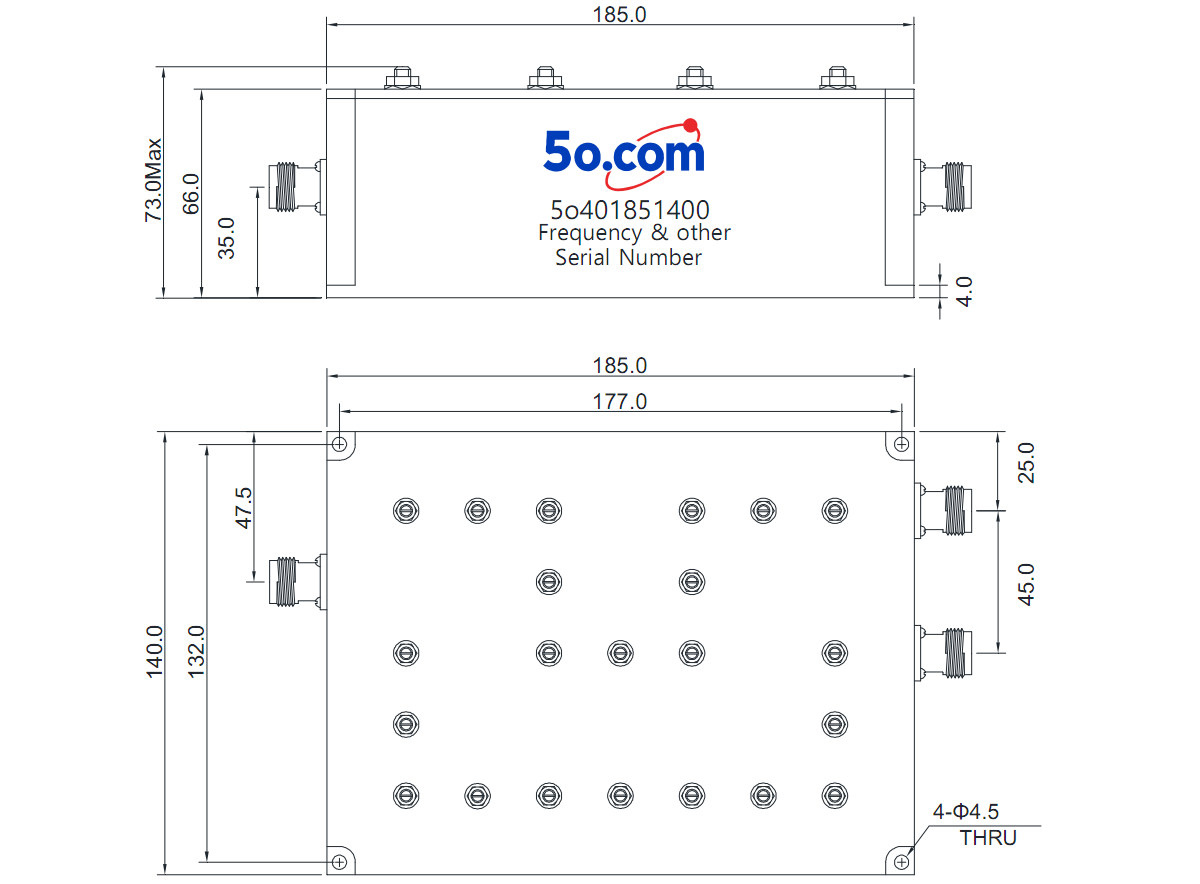

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
