    Duplexer 488.4 ~493.6MHz

    Application



    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Connector

    Type

    5o40181297048844936SK

    CH1

    491.4375~493.6125

    75

    4.0

    5.0

    1.3

    SMA Female

    CH2

    488.4375~490.6125

    5o40181297048844936NK

    CH1

    491.4375~493.6125

    75

    4.0

    5.0

    1.3

    N Female

    CH2

    488.4375~490.6125

    Basic Specifications

    Dimension

    181*297*80mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -10 ~ +50℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

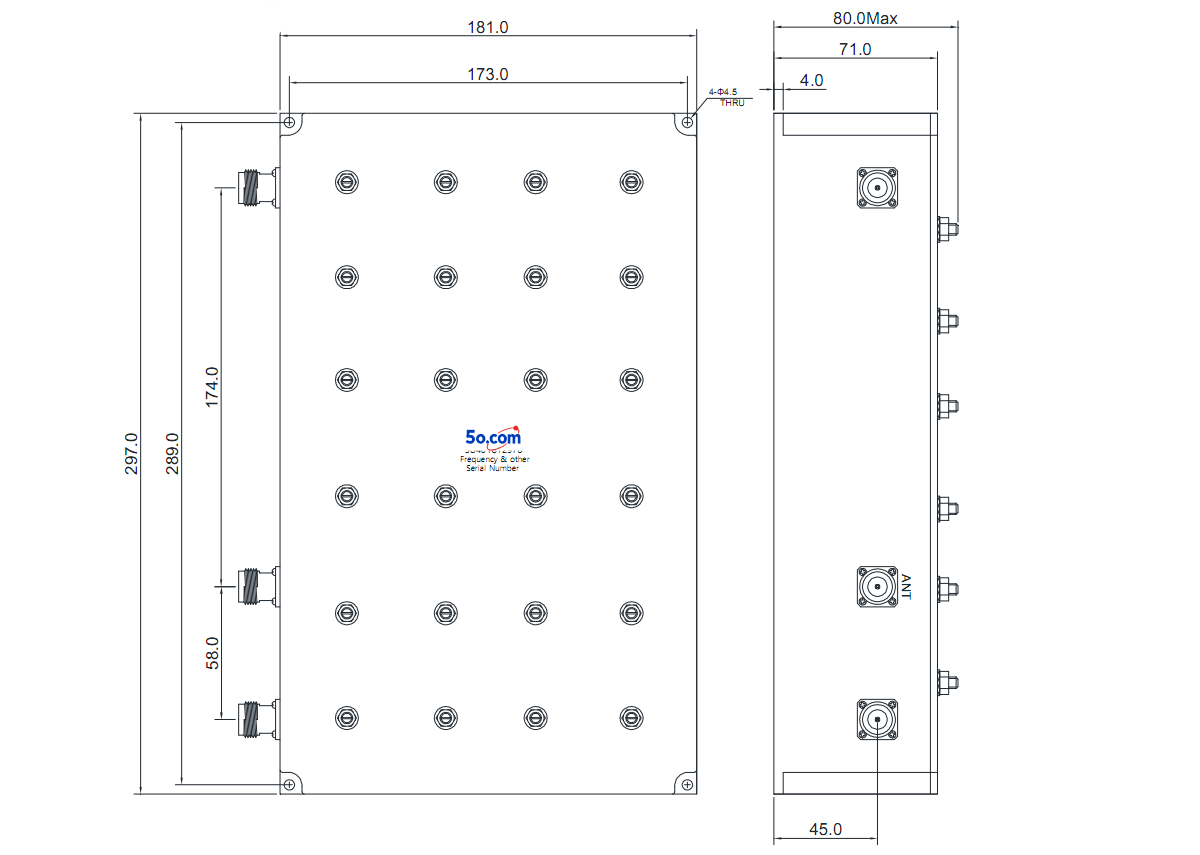

    Overall Dimension(mm)








    Tolerances: ±2% unless otherwise stated.
