    Duplexer 7424 ~ 7789MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Power

    (W)

    Connector Type

    5o4018097074247789SKTWR112

    CH1

    7424 ~ 7544

    70

    1.2 Ripple 0.5dB

    1.5

    20

    SMA Female

    @TX & RX

    WR112 @ANT

    CH2

    7669 ~ 7789

    Basic Specifications

    Dimension

    180*97.7*19.5mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Grey

    Storage Temperature

    -55 ~ +125℃

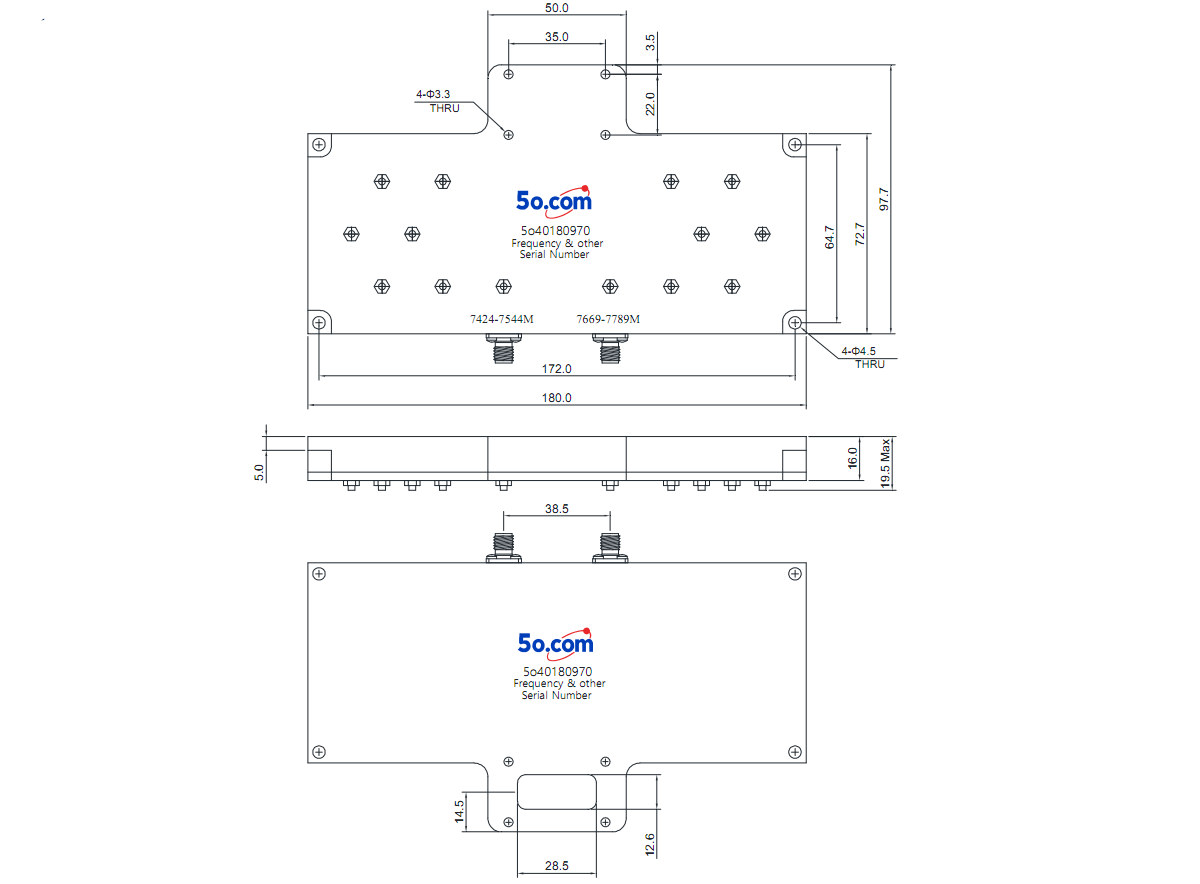

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
