    Duplexer 600 ~ 2200MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Military, space and commercial applications.

    ▶It can be customized according to customer requirements.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range

     (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    Rejection

    VSWR
      Max

    Connector Type

    5o401701250699756SK

    CH1

    729 ~ 746

    80

    1.5

    50dB @803~5000MHz

    1.3

    SMA Female

    CH2

    699 ~ 716

    50dB @DC~652MHz

    5o40170125019202170SK

    CH1

    2110~2170

    80

    1.5

    50dB @2300~5000MHz

    1.3

    SMA Female

    CH2

    1920~1980

    50dB @DC~1805MHz

    5o40170125019202170NK

    CH1

    2110~2170

    80

    1.5

    50dB @2300~5000MHz

    1.3

    N Female

    CH2

    1920~1980

    50dB @DC~1805MHz

    Basic Specifications

    Dimension

    170*125*43mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

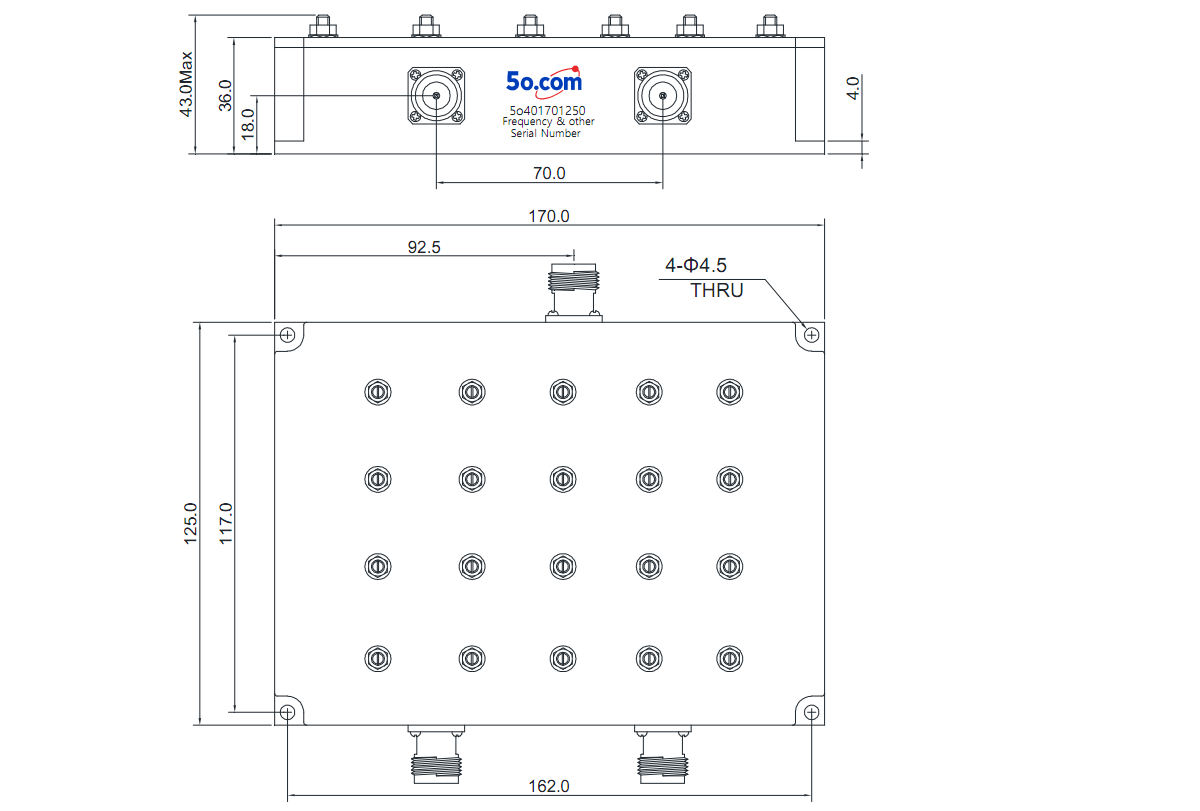

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
